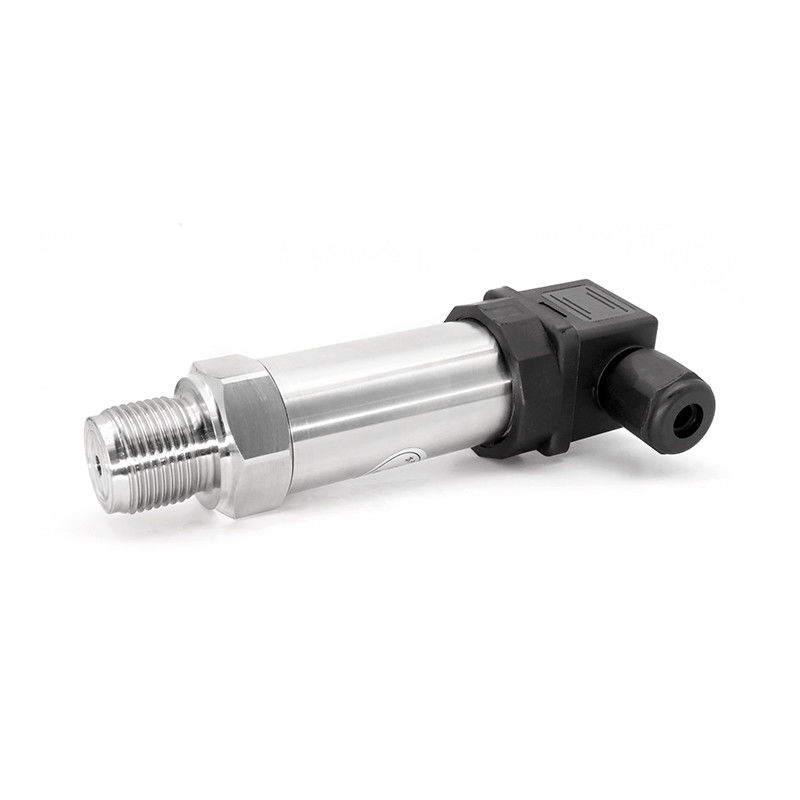

Energy Systems Industrial Pressure Sensor Resource Management Hvac Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Energy Systems Industrial Pressure Sensor

Resource Management Industrial Pressure Sensor

Energy Systems Hvac Pressure Transducer

Product Description

Industrial Pressure Sensor for Water Resource Management and Energy Systems

Key Features

Broad Temperature Tolerance: Operates reliably in extreme conditions, from -40°C to 85°C

Space-Efficient & Cost-Effective: Compact design optimized for efficiency without sacrificing performance

Smart Compensation Algorithms: Utilizes advanced correction technology for improved measurement precision and consistency

Superior Overload Resistance: Withstands up to 150% of the rated pressure, ensuring operational safety

Exceptional Impact Resistance: Designed for robustness, capable of handling demanding and harsh industrial environments

Flexible Output Options: Offers multiple signal outputs to seamlessly integrate with diverse control systems

Tailored Customization: Easily adaptable to meet a variety of industry-specific requirements

Typical Applications

Water Resource Management & Energy Systems

Industrial Automation & Process Control

Machinery and Equipment Manufacturing

Petrochemical Processing

Food Production & Pharmaceutical Manufacturing

Product Overview

The 200 Series Pressure Transmitter is an independently developed solution, purpose-built for a wide range of industrial pressure sensing scenarios. At its core is a unique ceramic sensor, delivering dependable accuracy and long-term stability.

This transmitter is engineered for resilience, featuring high resistance to both elevated temperatures and corrosive environments. Its streamlined, compact profile—combined with robust performance and competitive pricing—makes it an excellent fit for monitoring pressure in liquids and gases across multiple sectors, including hydraulics, process automation, machinery manufacturing, petrochemicals, as well as food and pharmaceutical industries.

From research and design to production, calibration, and final inspection, every phase of the manufacturing process strictly follows global quality management standards, ensuring reliable product performance and consistent quality throughout.

Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance
2-wire	3-wire
Output Signal	4~20mA
Supply Voltage	8-32V DC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread: 7/16~20 UNF External Thread: 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable: Thread specifications can be customized according to customer requirements
Materials	Housing: SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable Sensor: Ceramic (Standard) O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: In what ways does Songfast stand out from other sensor manufacturers?

Songfast's engineering team brings more than 20 years of dedicated expertise in the sensor field. We provide swift, professional responses and tailor our solutions to match each customer's unique application demands—including full support for product customization. Our robust quality control system oversees every production stage, ensuring every order meets rigorous standards and is typically delivered within 30 days.

Q2: Which certifications and compliance standards does Songfast uphold?

We place a strong emphasis on quality and regulatory compliance. Songfast's operations are certified to several leading international standards: ISO 9001 (Quality Management), IATF 16949 (Automotive Quality), ISO 45001 (Occupational Health & Safety), and ISO 14001 (Environmental Management). In addition, we hold over 20 national patents, highlighting our focus on innovation and continual technological progress.

Q3: Can Songfast develop customized products beyond those shown on your website?

Absolutely. Beyond our catalog products, we offer bespoke development services to fulfill specialized or unique requirements. Our experienced engineering team is ready to collaborate with you to create tailored solutions aligned with your specific needs.
