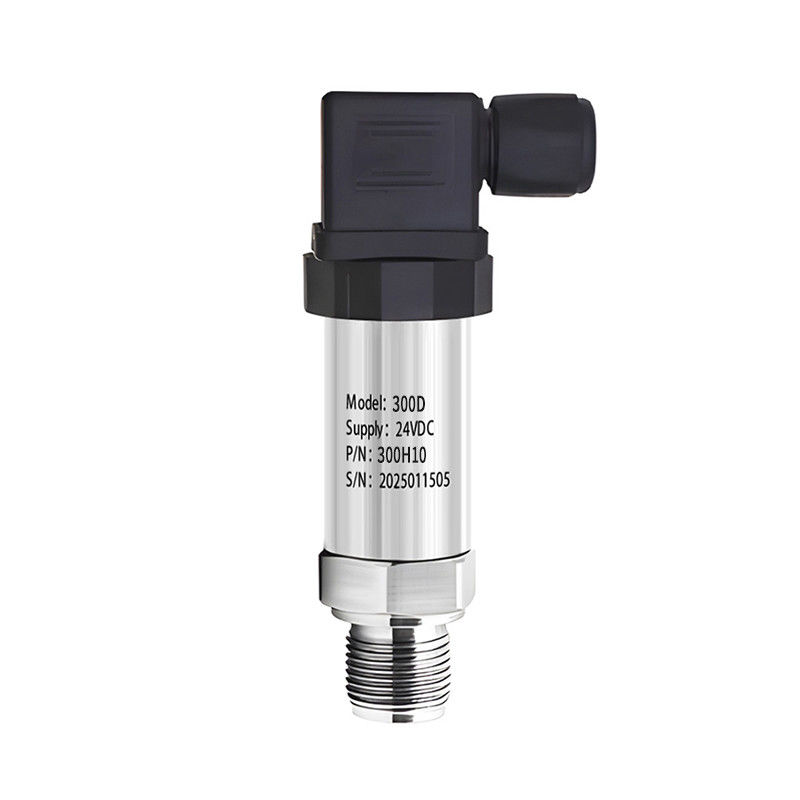

High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery
  • name
  • name
  • name

High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery

Brand Name: SongFast
MOQ: 500pcs
Price: $37.80 - $40.80/pieces
Packaging Details: According to customer requirements
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan,China
Certification:
ISO 9001, IATF 16949
Document:
300 Series Pressure Transmi...er.pdf
Pressure Type:
Gauge Pressure, Negative Pressure, Absolute Pressure
Range:
≤±1%F.S；Customizable
Housing Materials:
SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable
Sensor Materials:
Ceramic (Standard)
O-ring Materials:
NBR (Standard), PTFE/CR/EPDM (Optional)
Cable Materials:
RVVP2×0.35mm² PVVP3×0.35mm²
Pressure Connection:
Thread Specifications Can Be Customized According To Customer Requirements
Protection Rating:
IP65、IP67、Customizable
Long-term Stability:
0.1%F.S.±0.05%/year
Insulation Resistance:
>100M Ω @50V DC
Supply Ability:
10000pcs/month
Highlight:

High Precision Industrial Pressure Sensor

,

Petrochemical Industrial Pressure Sensor

,

Construction Machinery Electronic Pressure Sensor

Product Description
High Precision Industrial Pressure Sensor
Designed for petrochemical industry and construction machinery applications, the 300 Series Transmitter delivers exceptional performance in demanding environments.
Key Features
  • Wide Temperature Range: -40℃ to 105℃
  • Compact Structure: Exceptional cost-effectiveness
  • Advanced Technology: Algorithm compensation and correction
  • Overload Resistance: 150% F.S. performance
  • High Impact Resistance
  • Multiple Signal Outputs
  • Customization: Supports various specifications
Applications
  • Industrial Control
  • Automobiles and Ships
  • Petrochemical Industry
  • Construction Machinery
  • Aerospace
Product Overview
The 300 Series Transmitter is a fully independent and self-developed product designed for specialized industrial pressure applications. It incorporates a high-precision sputtered thin-film element as its core sensor, delivering compact size, lightweight design, high accuracy, and impact resistance.
Engineered for easy installation, this transmitter offers superior performance at a cost-effective price, making it ideal for measuring industrial liquids and gases across various sectors including industrial control, automotive and marine applications, petrochemical industry, and construction machinery.
Our comprehensive manufacturing process covers every stage—from R&D design and production assembly to calibration and quality inspection. We strictly adhere to international quality production standards, ensuring the highest levels of quality and reliability.
High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery 0 High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery 1
Technical Specifications
Model300 Series
Pressure TypeGauge Pressure, Absolute Pressure
Range0-1…2000 bar (Customizable)
Accuracy≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable
Electrical Performance2-wire | 3-wire
Output Signal4~20mA | 0~5V | 0~10V | 0.5~4.5V
Supply Voltage10-30V DC | 8~32V DC | 12-32V DC | 8-32V DC / 5V DC
Operating Temperature-40℃~105℃(Medium temperature), Customizable
Storage Temperature-40℃~105℃
Electrical ConnectionM12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable
Pressure ConnectionInternal Thread | 7/16~20 UNF
External Thread | 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable | Thread specifications can be customized according to customer requirements
MaterialsHousing | SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable
Sensor | Sputtered film (standard 17-4PH), Customizable
O-ring | NBR (Standard), PTFE/CR/EPDM (Optional)
Protection RatingIP65,IP67,Customizable
Response Time≤10ms
Overload Pressure150%F.S.
Long-term Stability0.1%F.S.±0.05%/year
Burst Pressure1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar)
Insulation Resistance>100M Ω @50V DC
Dimensions and Wiring Definitions
High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery 2
Wiring Definitions
High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery 3
Ordering Guide
High Precision Industrial Pressure Sensor For Petrochemical And Construction Machinery 4
Frequently Asked Questions
Q1: What gives Songfast a competitive edge in the market?
A: Songfast's technical team has over 20 years of specialized experience in the sensor industry. We are dedicated to providing rapid, professional solutions tailored to our clients' specific needs, and we readily accommodate custom requests. Our quality management team oversees production rigorously, ensuring we maintain strict quality standards and can deliver products within 30 days.
Q2: Which certifications and compliance standards has Songfast achieved?
A: We are proud to hold the following certifications:
  • ISO 9001 (Quality Management)
  • IATF 16949 (Automotive Industry)
  • ISO 45001 (Occupational Safety)
  • ISO 14001 (Environmental Management)
In addition, we have secured over 20 national patents, highlighting our commitment to innovation and leadership in the industry.
Q3: Does Songfast provide custom product development beyond the existing catalog?
A: Yes, we offer comprehensive custom development services tailored to meet unique requirements that extend beyond our standard product offerings.
