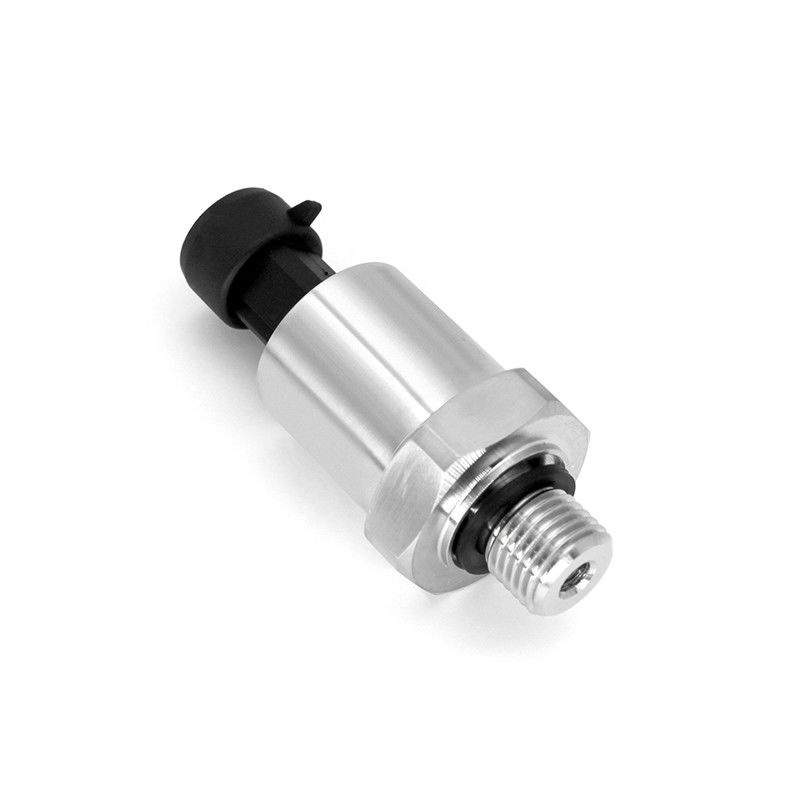

Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace
  • name
  • name
  • name

Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace

Brand Name: SongFast
MOQ: 500pcs
Price: $37.80 - $40.80/pieces
Packaging Details: According to customer requirements
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan,China
Certification:
ISO 9001, IATF 16949
Document:
300 Series Pressure Transmi...er.pdf
Pressure Type:
Gauge Pressure, Negative Pressure, Absolute Pressure
Range:
≤±1%F.S；Customizable
Housing Materials:
SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable
Sensor Materials:
Ceramic (Standard)
O-ring Materials:
NBR (Standard), PTFE/CR/EPDM (Optional)
Cable Materials:
RVVP2×0.35mm² PVVP3×0.35mm²
Pressure Connection:
Thread Specifications Can Be Customized According To Customer Requirements
Protection Rating:
IP65、IP67、Customizable
Long-term Stability:
0.1%F.S.±0.05%/year
Insulation Resistance:
>100M Ω @50V DC
Supply Ability:
10000pcs/month
Highlight:

Aerospace Stainless Steel Pressure Transducer

,

Machinery Stainless Steel Pressure Transducer

,

Erosion Resistant Electrical Pressure Transducer

Product Description
Erosion Resistant Stainless Steel Pressure Transducer
Special Industrial Pressure Transmitter For Construction Machinery And Aerospace
Key Features
  • Wide Temperature Range: -40℃ to 105℃
  • Compact Structure with Excellent Cost-Effectiveness
  • Algorithm Compensation and Correction Technology
  • 150% F.S Overload Resistance Performance
  • High Impact Resistance
  • Multiple Signal Outputs
  • Supports Customization for Various Specifications
Applications
  • Industrial Control
  • Automobiles and Ships
  • Petrochemical Industry
  • Construction Machinery
  • Aerospace
Product Description
The 300 Series Transmitter is a fully independent and self-developed product, designed for specialized industrial pressure applications. Its core sensor utilizes a high-precision sputtered thin-film element.
This product features compact size, lightweight design, high accuracy, and impact resistance. With easy installation, superior performance, and cost-effectiveness, it is suitable for measuring industrial liquids and gases. It is particularly well-suited for applications in industrial control, automotive and marine industries, petrochemical industry, and construction machinery.
From R&D design, production assembly, calibration, to quality inspection, every step of our manufacturing process strictly adheres to international quality production system standards.
Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace 0 Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace 1
Technical Specifications
Model 300 Series
Pressure Type Gauge Pressure, Absolute Pressure
Range 0-1…2000 bar (Customizable)
Accuracy ≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable
Electrical Performance 2-wire | 3-wire
Output Signal 4~20mA | 0~5V | 0~10V | 0.5~4.5V
Supply Voltage 10-30V DC | 8~32V DC | 12-32V DC | 8-32V DC / 5V DC
Operating Temperature -40℃~105℃(Medium temperature), Customizable
Storage Temperature -40℃~105℃
Electrical Connection M12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable
Pressure Connection Internal Thread | 7/16~20 UNF
External Thread | 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable | Thread specifications can be customized according to customer requirements
Materials Housing | SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable
Sensor | Sputtered film (standard 17-4PH), Customizable
O-ring | NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating IP65,IP67,Customizable
Response Time ≤10ms
Overload Pressure 150%F.S.
Long-term Stability 0.1%F.S.±0.05%/year
Burst Pressure 1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar)
Insulation Resistance >100M Ω @50V DC
Dimensions and Wiring Definitions
Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace 2
Wiring Definitions
Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace 3
Ordering Guide
Erosion Resistant Stainless Steel Pressure Transducer For Construction Machinery And Aerospace 4
Frequently Asked Questions
Q1: What gives Songfast a competitive edge in the market?
Songfast's technical team brings over two decades of specialized experience in the sensor industry. We are committed to delivering fast, professional solutions tailored to our clients' specific applications, and we readily accommodate custom requests. Our dedicated quality management team ensures rigorous production oversight, enabling us to maintain strict quality standards and guarantee delivery within 30 days.
Q2: Which certifications and compliance standards has Songfast achieved?
We proudly hold the following certifications:
  • ISO 9001 (Quality Management)
  • IATF 16949 (Automotive Industry)
  • ISO 45001 (Occupational Safety)
  • ISO 14001 (Environmental Management)
Additionally, we have been awarded more than 20 national patents, reflecting our commitment to innovation and industry leadership.
Q3: Does Songfast provide custom product development beyond the existing catalog?
Yes, we offer comprehensive custom development services to meet unique requirements that extend beyond our standard product offerings.
