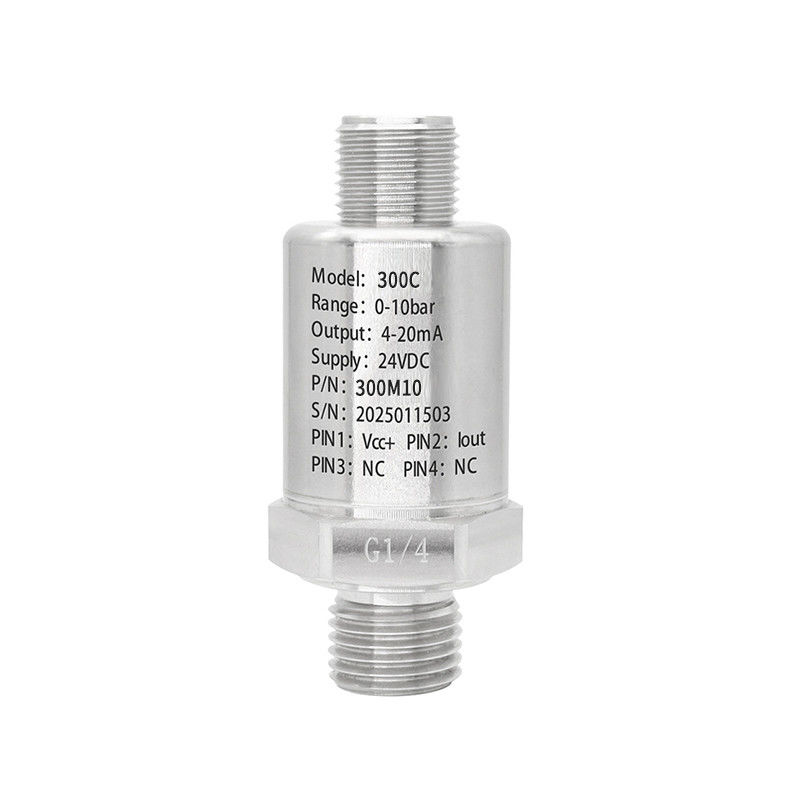

Special Industrial Pressure Sensor Easy Control Industrial Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

300 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Special Industrial Pressure Sensor

Easy Control Industrial Pressure Sensor

Easy Control Industrial Pressure Transducer

Product Description

Special Industrial Pressure Sensor Easy Control Industrial Pressure Transducer

Special Industrial Pressure Transmitter for Industrial Control and Construction Machinery

Key Features

Wide Temperature Range: -40℃ to 105℃
Compact Structure: Excellent cost-effectiveness
Advanced Technology: Algorithm compensation and correction
Overload Resistance: 150% F.S. performance
High Impact Resistance
Multiple Signal Outputs
Customization: Supports various specifications

Applications

Industrial Control
Automobiles and Ships
Petrochemical Industry
Construction Machinery
Aerospace

Product Description

The 300 Series Transmitter is a fully independent and self-developed product, specifically designed for specialized industrial pressure applications. It features a high-precision sputtered thin-film element as its core sensor, which provides:

Compact Size and Lightweight Design
High Accuracy
Impact Resistance

This transmitter is engineered for easy installation and delivers superior performance at a cost-effective price, making it ideal for measuring industrial liquids and gases. It is particularly well-suited for industrial control, automotive and marine applications, petrochemical industry, and construction machinery.

Our manufacturing process encompasses every stage—from R&D design and production assembly to calibration and quality inspection—adhering strictly to international quality production standards, ensuring the highest levels of quality and reliability.

Technical Specifications

Model	300 Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1…2000 bar (Customizable)
Accuracy	≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V
Supply Voltage	10-30V DC \| 8~32V DC \| 12-32V DC \| 8-32V DC / 5V DC
Operating Temperature	-40℃~105℃(Medium temperature), Customizable
Storage Temperature	-40℃~105℃
Electrical Connection	M12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Sputtered film (standard 17-4PH), Customizable O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What gives Songfast a competitive edge in the market?

Songfast's technical team has over 20 years of specialized experience in the sensor industry. We are dedicated to providing rapid, professional solutions tailored to our clients' specific needs, and we readily accommodate custom requests. Our quality management team oversees production rigorously, ensuring we maintain strict quality standards and can deliver products within 30 days.

Q2: Which certifications and compliance standards has Songfast achieved?

We are proud to hold the following certifications:

ISO 9001 (Quality Management)
IATF 16949 (Automotive Industry)
ISO 45001 (Occupational Safety)
ISO 14001 (Environmental Management)

In addition, we have secured over 20 national patents, highlighting our commitment to innovation and leadership in the industry.

Q3: Does Songfast provide custom product development beyond the existing catalog?

Yes, we offer comprehensive custom development services tailored to meet unique requirements that extend beyond our standard product offerings.
