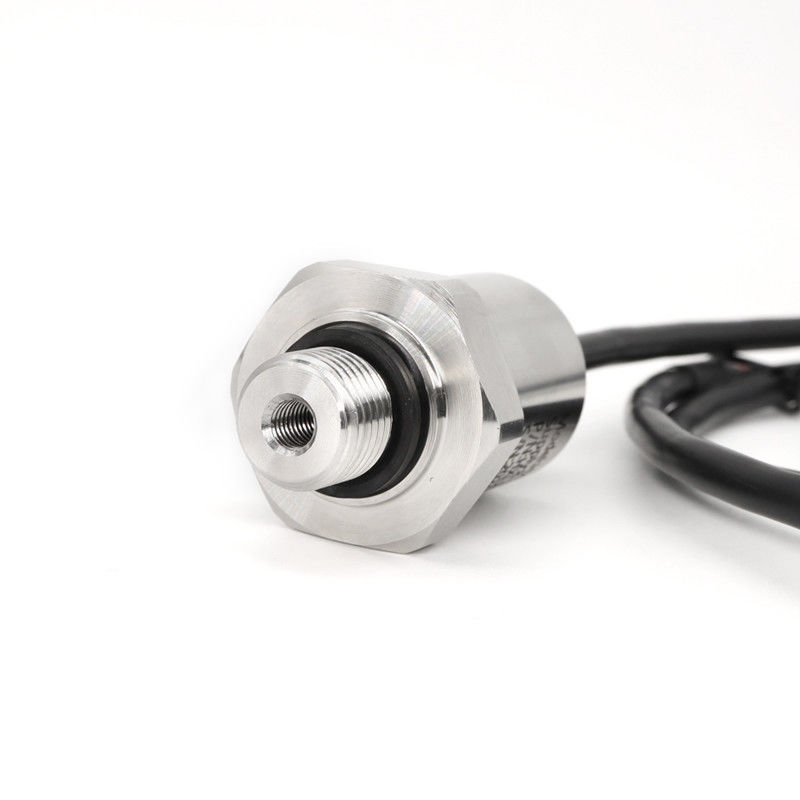

Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive
  • name
  • name
  • name
  • name

Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive

Brand Name: SongFast
MOQ: 500pcs
Price: $37.80 - $40.80/pieces
Packaging Details: According to customer requirements
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan,China
Certification:
ISO 9001, IATF 16949
Document:
300 Series Pressure Transmi...er.pdf
Pressure Type:
Gauge Pressure, Negative Pressure, Absolute Pressure
Range:
≤±1%F.S；Customizable
Housing Materials:
SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable
Sensor Materials:
Ceramic (Standard)
O-ring Materials:
NBR (Standard), PTFE/CR/EPDM (Optional)
Cable Materials:
RVVP2×0.35mm² PVVP3×0.35mm²
Pressure Connection:
Thread Specifications Can Be Customized According To Customer Requirements
Protection Rating:
IP65、IP67、Customizable
Long-term Stability:
0.1%F.S.±0.05%/year
Insulation Resistance:
>100M Ω @50V DC
Supply Ability:
10000pcs/month
Highlight:

Compact Stainless Steel Pressure Sensor

,

Customizable Stainless Steel Pressure Sensor

,

Automotive Electronic Pressure Transmitter

Product Description
Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive
Customizable Industrial Pressure Sensor for Industrial Control and Automotive Applications Compact and Lightweight Design
Key Features
  • Wide Temperature Range: -40℃ to 105℃
  • Compact Structure: Excellent cost-effectiveness
  • Advanced Technology: Algorithm compensation and correction
  • Overload Resistance: 150% F.S. performance
  • High Impact Resistance
  • Multiple Signal Outputs
  • Customization: Supports various specifications
Applications
  • Industrial Control
  • Automobiles and Ships
  • Petrochemical Industry
  • Construction Machinery
  • Aerospace
Product Description
The 300 Series Transmitter is an independently developed product specifically designed for specialized industrial pressure applications. Its core sensor features a high-precision sputtered thin-film element, offering:
  • Compact Size and Lightweight Design
  • High Accuracy
  • Impact Resistance
With easy installation and superior performance, this transmitter is ideal for measuring industrial liquids and gases. It excels in various sectors, including:
  • Industrial control
  • Automotive and marine industries
  • Petrochemical industry
  • Construction machinery
Our manufacturing process encompasses every stage, from R&D design and production assembly to calibration and quality inspection, all adhering strictly to international quality production standards. This ensures that we deliver products of the highest quality and reliability.
Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive 0 Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive 1
Technical Specifications
Model 300 Series
Pressure Type Gauge Pressure, Absolute Pressure
Range 0-1…2000 bar (Customizable)
Accuracy ≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable
Electrical Performance 2-wire | 3-wire
Output Signal 4~20mA | 0~5V | 0~10V | 0.5~4.5V
Supply Voltage 10-30V DC | 8~32V DC | 12-32V DC | 8-32V DC / 5V DC
Operating Temperature -40℃~105℃(Medium temperature), Customizable
Storage Temperature -40℃~105℃
Electrical Connection M12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable
Pressure Connection Internal Thread | 7/16~20 UNF
External Thread | 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable | Thread specifications can be customized according to customer requirements
Materials Housing | SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable
Sensor | Sputtered film (standard 17-4PH), Customizable
O-ring | NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating IP65,IP67,Customizable
Response Time ≤10ms
Overload Pressure 150%F.S.
Long-term Stability 0.1%F.S.±0.05%/year
Burst Pressure 1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar)
Insulation Resistance >100M Ω @50V DC
Dimensions and Wiring Definitions
Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive 2
Wiring Definitions
Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive 3
Ordering Guide
Compact And Lightweight Stainless Steel Pressure Sensor Customizable For Automotive 4
Frequently Asked Questions
Q1: What gives Songfast a competitive edge in the market?
Songfast's technical team boasts over 20 years of specialized experience in the sensor industry. We are dedicated to providing rapid, professional solutions tailored to our clients' specific needs, and we readily accommodate custom requests. Our quality management team ensures rigorous oversight throughout production, enabling us to uphold strict quality standards and guarantee delivery within 30 days.
Q2: Which certifications and compliance standards has Songfast achieved?
We proudly hold the following certifications:
  • ISO 9001 (Quality Management)
  • IATF 16949 (Automotive Industry)
  • ISO 45001 (Occupational Safety)
  • ISO 14001 (Environmental Management)
In addition, we have secured over 20 national patents, underscoring our commitment to innovation and leadership in the industry.
Q3: Does Songfast provide custom product development beyond the existing catalog?
Yes, we offer comprehensive custom development services to address unique requirements that extend beyond our standard product offerings.
