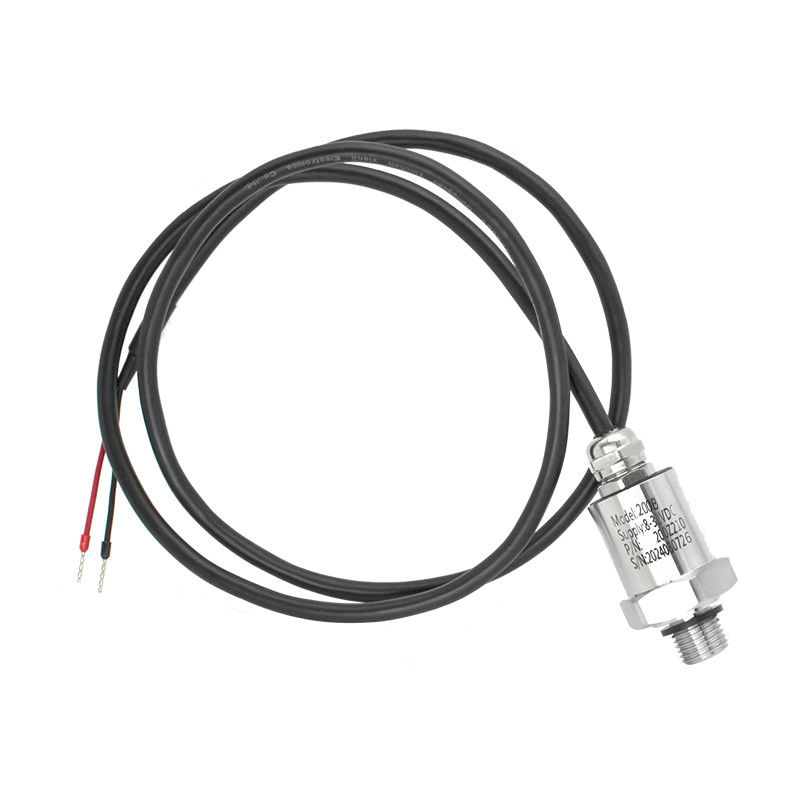

Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure
  • name
  • name
  • name
  • name

Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure

Brand Name: SongFast
MOQ: 500pcs
Price: $5.30 - $6.50/pieces
Packaging Details: According to customer requirements
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan,China
Certification:
ISO 9001, IATF 16949
Document:
200 Series Pressure Transmi...r.docx
Pressure Type:
Gauge Pressure, Negative Pressure, Absolute Pressure
Range:
≤±1%F.S；Customizable
Housing Materials:
SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable
Sensor Materials:
Ceramic (Standard)
O-ring Materials:
NBR (Standard), PTFE/CR/EPDM (Optional)
Cable Materials:
RVVP2×0.35mm² PVVP3×0.35mm²
Pressure Connection:
Thread Specifications Can Be Customized According To Customer Requirements
Protection Rating:
IP65、IP67、Customizable
Long-term Stability:
0.1%F.S.±0.05%/year
Insulation Resistance:
>100M Ω @50V DC
Supply Ability:
10000pcs/month
Highlight:

Customizable Industrial Pressure Transducer

,

Negative Pressure Industrial Pressure Transducer

,

Customizable Industrial Pressure Transmitter

Product Description
Customizable Industrial Pressure Transducer
Advanced pressure sensor for gauge pressure, negative pressure, and absolute pressure applications with comprehensive customization options.
Product Specifications
Model 200 Series
Pressure Type Gauge Pressure, Negative Pressure, Absolute Pressure
Range -1-0-1…600 bar (Customizable)
Accuracy ≤ ±1%F.S；Customizable
Electrical Performance 2-wire | 3-wire | 4-wire
Output Signal 4~20mA | 0.5~4.5V | 0.35~2.7V Ratio | 0.132~4.5V Ratio | IIC/UART Digital Signal
Supply Voltage 8-32V DC | 5V DC | 3-5.5V DC/5VDC
Operating Temperature -40℃~85℃
Storage Temperature -40℃~105℃
Electrical Connection Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection Internal Thread | 7/16~20 UNF
External Thread | 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable thread specifications available
Materials Housing: SUS304 stainless steel (standard), Copper (optional), 316L stainless steel (optional), Customizable
Sensor: Ceramic (Standard)
O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating IP65, IP67, Customizable
Response Time ≤10ms
Overload Pressure 150%F.S.
Long-term Stability 0.1%F.S.±0.05%/year
Burst Pressure 300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance >100M Ω @50V DC
Key Features
  • Wide Temperature Range: -40℃ to 85℃
  • Compact Structure: Excellent cost-effectiveness
  • Advanced Technology: Algorithm compensation and correction
  • Overload Resistance: 150% F.S. performance
  • High Impact Resistance
  • Multiple Signal Outputs
  • Customization: Supports various specifications
Industry Applications
  • Water Resources Energy
  • Process Equipment
  • Mechanical Manufacturing
  • Petrochemical Industry
  • Food and Pharmaceutical Industry
Product Description
The 200 Series Transmitter is a fully independent and self-developed product designed for general industrial pressure applications. Its core sensor utilizes a proprietary ceramic design, providing:
  • High Temperature Resistance
  • Corrosion Resistance
  • Exceptional Stability and Reliability
With its compact size and superior overall performance, this transmitter is suitable for measuring industrial liquids and gases across multiple industries including hydraulic energy, process equipment, machinery manufacturing, petrochemical, and food and pharmaceutical sectors.
Our manufacturing process—covering R&D design, production assembly, calibration, and quality inspection—strictly adheres to international quality production standards, ensuring the highest level of quality and performance.
Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure 0 Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure 1
Dimensions and Wiring Definitions
Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure 2
Wiring Definitions
Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure 3
Ordering Guide
Customizable Industrial Pressure Transducer For Negative Pressure And Absolute Pressure 4
Frequently Asked Questions
What makes Songfast's products stand out from competitors?
Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.
What official certifications and industry compliance standards has the company obtained?
Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental). We also hold over 20 national patents.
Do you offer custom development for new products beyond your website offerings?
Yes, our company provides custom development services to meet specific customer needs.
