Industrial Pressure Sensor

Air Compressor Industrial Pressure Sensor Impact Resistance Oem Pressure Transmitter

All Category

Air Compressor Pressure Sensor

Flush Diaphragm Pressure Sensor

Liquid Level Sensors

Mrs. Jenny Huang

songfast168@gmail.com

+8613580900852

Contact Now

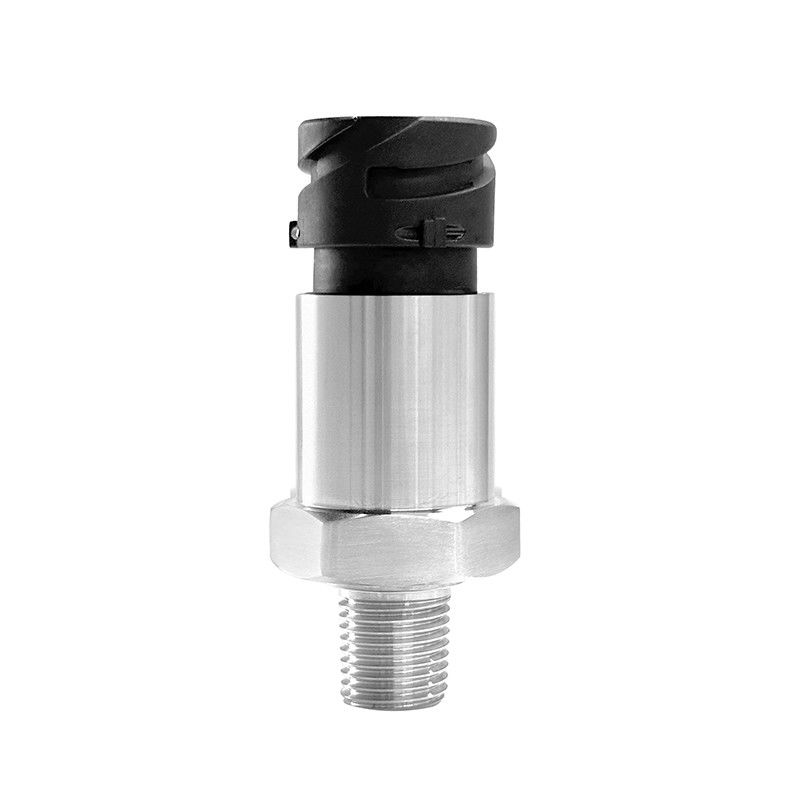

Air Compressor Industrial Pressure Sensor Impact Resistance Oem Pressure Transmitter

Brand Name:	SongFast
MOQ:	500pcs
Price:	$7.80 - $9.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100-E Series Pressure Trans...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Air Compressor Industrial Pressure Sensor

Impact Resistance Industrial Pressure Sensor

Impact Resistance Oem Pressure Transmitter

Product Description

Industrial Air Compressor Pressure Sensor

Industrial Pressure Sensor for Air Compressor System with Wide Temperature Range, Compact Structure, and High Impact Resistance

Key Features

Wide Temperature Range: -40℃ to 135℃
Compact Structure with Excellent Cost-Effectiveness
Algorithm Compensation and Correction Technology
400% F.S. Overload Resistance Performance
High Impact Resistance
Multiple Signal Outputs
Supports Customization for Various Specifications

Applications

Air Compressor Systems

Product Overview

The 100E series transmitter is a pressure product for air compressors developed completely independently. The core sensor uses a self-developed ceramic core. The product is resistant to high temperature, corrosion, offers high stability, high reliability, high overload pressure, and high burst pressure. The product is small in size, has excellent overall performance, and is cost-effective, making it ideal for air compressor system applications.

Technical Specifications

Model	100E Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-3...70bar (Customizable)
Accuracy	≤±0.50% F.S. (Standard); ≤±1% F.S.; Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3~5.5V DC
Operating Temperature	-40℃~135℃
Storage Temperature	-40℃~135℃
Electrical Connection	Aviation connector (DIN72582-1); Customizable
Pressure Connection	External Thread: 1/4"-18NPT, R1/4, G1/4", G1/2", M14×1.5, M16×1.5, M20×1.5
Customizable Threads	Thread specifications can be customized according to customer requirements
Materials - Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Materials - Sensor	Ceramic flat film (Standard)
Materials - O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤20ms
Overload Pressure	400% F.S.
Long-term Stability	0.1% F.S.±0.05%/year
Burst Pressure	>600% F.S.
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

What official certifications and industry compliance standards has the company obtained?

Our certifications include: ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental). We also hold over 20 national patents.

Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
