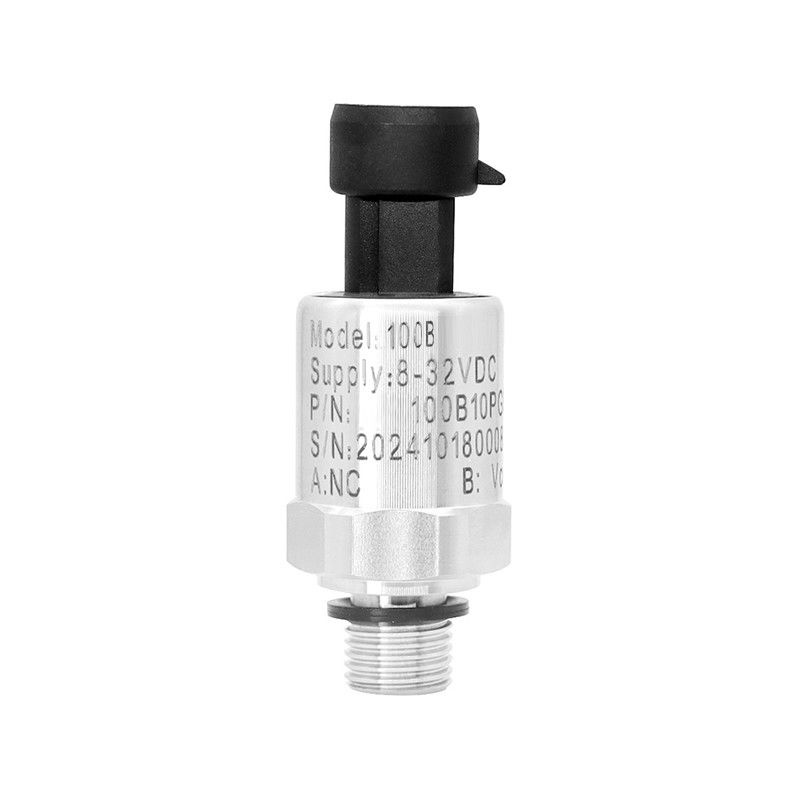

Highly Precise Industrial Pressure Transmitter 3 Wire Ceramic Materials

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Highly Precise Industrial Pressure Transmitter

3 Wire Industrial Pressure Transmitter

Ceramic Oem Pressure Transmitter

Product Description

High-Performance Industrial Pressure Sensor for Accurate Pressure Sensing in Industrial Processes

Speciﬁcations

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard))； ≤±1%F.S；Customizable
Electrical Performance	2-wire		3-wire
Output Signal	4~20mA		0~5V	0~10V	0.5~4.5V	10~90% Ratio
Supply Voltage	8~32V DC		8~32V DC	12~32V DC	8~32V DC/5V DC	3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector , Straight Connection
Pressure Connection	Internal Thread	7/16~20 UNF
	External Thread	1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
	Customizable	Thread speciﬁcations can be customized according to customer requirements
Materials	Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
	Sensor	Ceramic (Standard)
	O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Features

Wide Temperature Range: -35℃ to 105℃
Compact Structure: Excellent cost-effectiveness
Advanced Technology: Algorithm compensation and correction
Overload Resistance: 150% full scale
High Impact Resistance
Multiple Signal Outputs
Customization: Supports various specifications

Applications

Industrial refrigeration units
Air conditioning and refrigeration systems
Process control
Compressed air systems

Description

The 100 Series Transmitter is a fully independent, self-developed product designed specifically for air compressor refrigeration pressure applications. Its core sensor features a proprietary ceramic design, offering:

High temperature and corrosion resistance
Exceptional stability and reliability

With its compact size and superior performance, the transmitter is ideal for measuring industrial liquids and gases. It excels in applications across hydraulic energy, railway transportation, petrochemical industries, mechanical control, and air compression systems.

Our manufacturing process—from R&D design and production assembly to calibration and quality inspection—strictly adheres to international quality production standards, ensuring the highest level of quality and performance.

Highly Precise Industrial Pressure Transmitter 3 Wire Ceramic Materials 0

Highly Precise Industrial Pressure Transmitter 3 Wire Ceramic Materials 2

Dimensions and Wiring Deﬁnitions

Wiring Deﬁnitions

Ordering Guide

FAQ

Q1.What makes Songfast's products stand out from competitors?
A:Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

Q2.What official certifications and industry compliance standards has the company obtained?
A:Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), complemented by 20+ national patents.

Q3.Do you offer custom development for new products beyond your website offerings?
A: Yes, our company provides custom development services.
