Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection
  • name
  • name
  • name
  • name

Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection

Brand Name: SongFast
MOQ: 500pcs
Price: $5.30 - $6.50/pieces
Packaging Details: According to customer requirements
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan,China
Certification:
ISO 9001, IATF 16949
Document:
100 Series Pressure Transmi...er.pdf
Pressure Type:
Gauge Pressure, Negative Pressure, Absolute Pressure
Range:
≤±1%F.S；Customizable
Housing Materials:
SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable
Sensor Materials:
Ceramic (Standard)
O-ring Materials:
NBR (Standard), PTFE/CR/EPDM (Optional)
Cable Materials:
RVVP2×0.35mm² PVVP3×0.35mm²
Pressure Connection:
Thread Specifications Can Be Customized According To Customer Requirements
Protection Rating:
IP65、IP67、Customizable
Long-term Stability:
0.1%F.S.±0.05%/year
Insulation Resistance:
>100M Ω @50V DC
Supply Ability:
10000pcs/month
Highlight:

Anti Corrosion Air Compressor Pressure Transmitter

,

Customise Air Compressor Pressure Transmitter

,

IP67 Stainless Steel Pressure Transmitter

Product Description

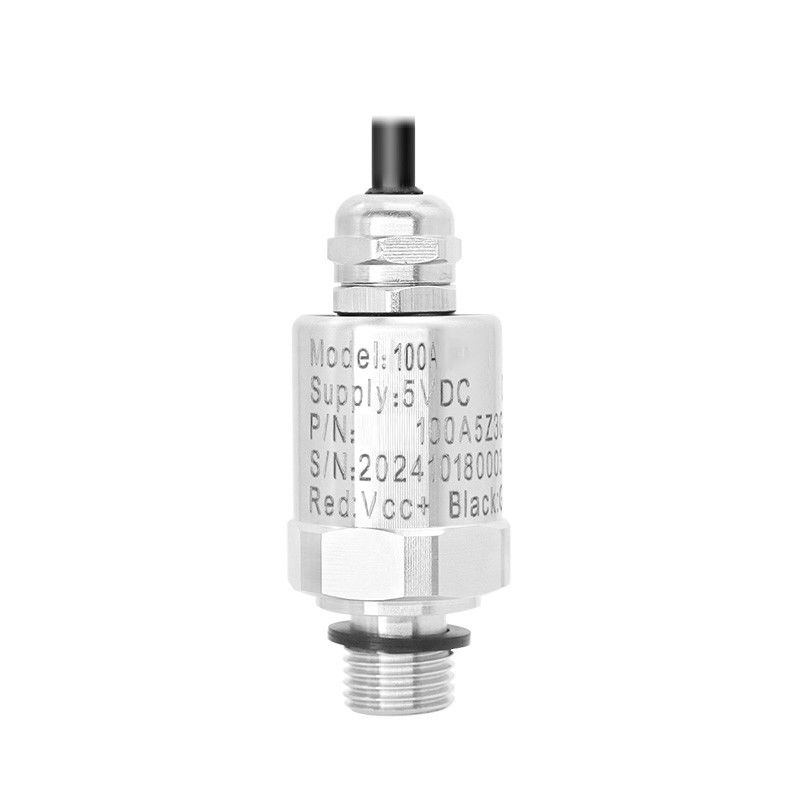

Anti Corrosion Air Compressor Pressure Transmitter with IP67 Protection
Compressor Cooling Pressure Transmitter for Air Compressor Refrigeration
The 100 Series Transmitter is a fully independent, self-developed product designed specifically for air compressor refrigeration pressure applications. Its core sensor utilizes a proprietary ceramic core technology.
Key Features
  • Wide temperature range: -35℃ to 105℃
  • Compact structure with excellent cost-effectiveness
  • Advanced algorithm compensation and correction technology
  • 150% F.S. overload resistance performance
  • High impact resistance
  • Multiple signal output options
  • Customization available for various specifications
Applications
  • Industrial refrigeration units
  • Air conditioning and refrigeration units
  • Process control systems
  • Compressed air systems
This product features high temperature resistance, corrosion resistance, high stability, and exceptional reliability. With its compact size, superior overall performance, and cost-effectiveness, it is ideal for measuring industrial liquids and gases. Particularly well-suited for applications in hydraulic energy, railway transportation, petrochemical industry, mechanical control, and air compression systems.
From R&D design and production assembly to calibration and quality inspection, every step of our manufacturing process strictly adheres to international quality production system standards.
Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 0 Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 1
Technical Specifications
Model 100 Series
Pressure Type Gauge Pressure, Negative Pressure, Absolute Pressure
Range -1-0-1…400 bar (Customizable)
Accuracy ≤±0.50% F.S. (Standard); ≤±1% F.S.; Customizable
Electrical Performance 2-wire | 3-wire
Output Signal 4~20mA | 0~5V | 0~10V | 0.5~4.5V | 10~90% Ratio
Supply Voltage 8~32V DC | 8~32V DC | 12~32V DC | 8~32V DC/5V DC | 3.3~5.5V DC
Operating Temperature -35℃~105℃
Storage Temperature -40℃~105℃
Electrical Connection Packard Connector, Straight Connection
Pressure Connection Internal Thread: 7/16~20 UNF
External Thread: 1/4" NPT, R1/4, G1/4", G1/2", M14×1.5, M16×1.5, M20×1.5
Customizable: Thread specifications can be customized according to customer requirements
Materials Housing: SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Sensor: Ceramic (Standard)
O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating IP65, IP67, Customizable
Response Time ≤10ms
Overload Pressure 150% F.S.
Long-term Stability 0.1% F.S.±0.05%/year
Burst Pressure 300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance >100M Ω @50V DC
Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 2
Dimensions and Wiring Definitions
Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 3
Wiring Definitions
Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 4
Ordering Guide
Anti Corrosion Air Compressor Pressure Transmitter Customise IP67 Protection 5
Frequently Asked Questions
What makes Songfast's products stand out from competitors?
Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.
What official certifications and industry compliance standards has the company obtained?
Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), complemented by 20+ national patents.
Do you offer custom development for new products beyond your website offerings?
Yes, our company provides custom development services.
