Overload Resistance HVAC Pressure Sensor Responsive Air Compressor Pressure Sensor

Brand Name:	SongFast
MOQ:	500pcs
Price:	$7.80 - $9.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100-E Series Pressure Trans...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Overload Resistance HVAC Pressure Sensor

Responsive HVAC Pressure Sensor

Responsive Air Compressor Pressure Sensor

Product Description

Exceptional Overload Resistance Refrigeration HVAC Pressure Sensor for Air Compressors

Key Features

Wide Temperature Range: Functions effectively from -40℃ to 135℃.
Compact Design: Engineered for optimal cost-effectiveness.
Advanced Compensation Technology: Employs algorithmic compensation and correction for improved performance.
Exceptional Overload Resistance: Can withstand up to 400% of the full-scale overload.
High Impact Durability: Designed to endure harsh conditions.
Multiple Output Options: Provides versatile signal outputs for diverse applications.
Customizable Specifications: Adapted to meet specific customer requirements.

Applications

Air Compressor Systems

Product Description

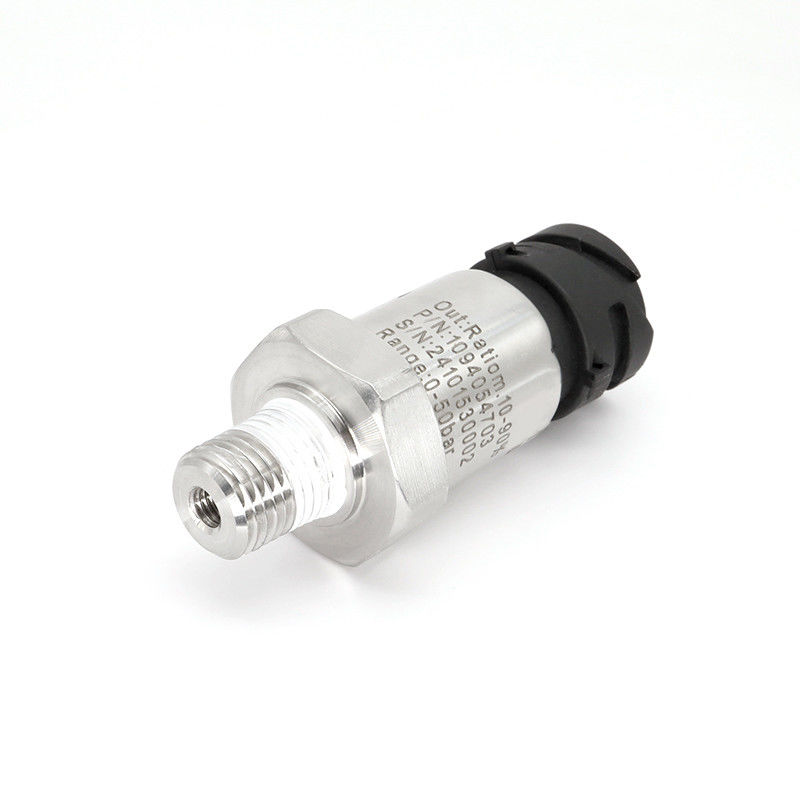

The 100E Series Transmitter is a self-developed pressure measurement device tailored specifically for air compressors. Its core sensor features a proprietary ceramic design that ensures excellent resistance to temperature fluctuations and corrosion, along with outstanding stability and reliability.

This compact transmitter delivers exceptional performance, making it ideal for air compressor systems. It is recognized for its high overload and burst pressure capabilities while maintaining cost-effectiveness and a small form factor.

Overload Resistance HVAC Pressure Sensor Responsive Air Compressor Pressure Sensor 0

Speciﬁcations

Model	100E Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-3...70bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard))； ≤±1%F.S；Customizable
Electrical Performance	2-wire		3-wire
Output Signal	4~20mA		0~5V	0~10V	0.5~4.5V	10~90% Ratio
Supply Voltage	8~32V DC		8~32V DC	12~32V DC	8~32V DC/5V DC	3~5.5V DC
Operating Temperature	-40℃~135℃
Storage Temperature	-40℃~135℃
Electrical Connection	Aviation connector (DIN72582-1); Customizable
Pressure Connection	External Thread	1/4"-18NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
	Customizable	Thread speciﬁcations can be customized according to customer requirements
Materials	Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
	Sensor	Ceramic ﬂat ﬁlm (Standard)
	O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤20ms
Overload Pressure	400%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	>600% F.S.
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Deﬁnitions

Overload Resistance HVAC Pressure Sensor Responsive Air Compressor Pressure Sensor 2

Wiring Deﬁnitions

Ordering Guide

FAQ

Q1: What makes Songfast's products stand out from competitors?
A: Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?
A: Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?
A: Yes, our company provides custom development services to meet specific customer needs.
