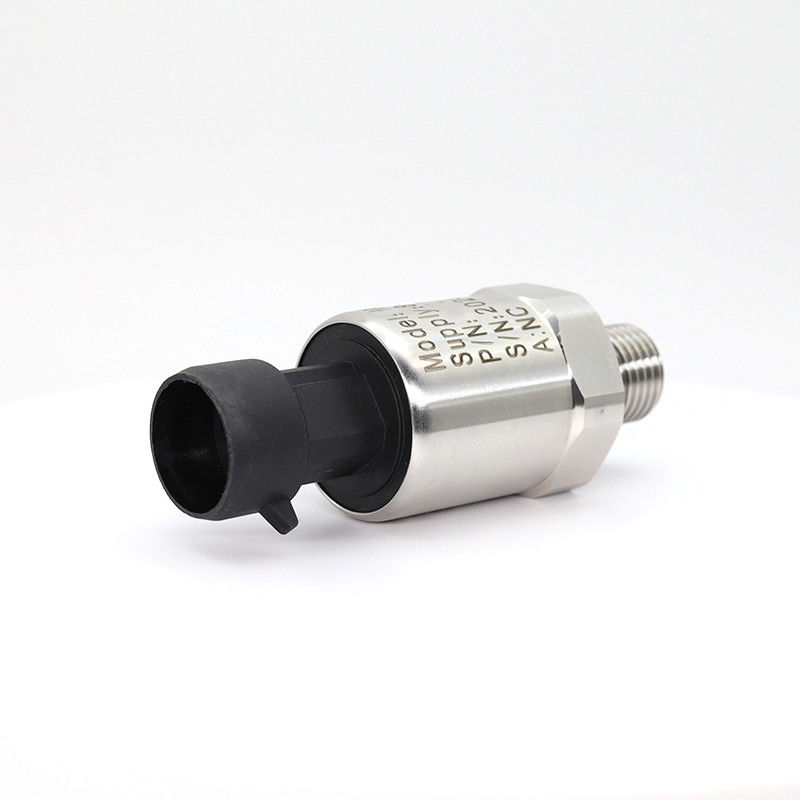

Customized Ac Refrigerant Pressure Sensor Space Saving For Cooling Systems

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Customized Ac Refrigerant Pressure Sensor

Cooling Systems Ac Refrigerant Pressure Sensor

Customized Air Conditioning Pressure Sensor

Product Description

Customized AC Refrigerant Pressure Sensor for Cooling Systems

Refrigeration and HVAC Pressure Sensor for Industrial Cooling Systems

Key Features

Wide Operating Temperature Range: Reliably operates in extreme environments, spanning -35℃ to 105℃
Compact and Efficient Design: Streamlined for space-saving installations and cost-effectiveness
Advanced Compensation Technology: Employs algorithm-based calibration for highly accurate pressure readings
Enhanced Overload Capacity: Can endure up to 150% of the full-scale load without performance degradation
Exceptional Durability: Built to withstand tough industrial conditions with superior impact resistance
Versatile Output Options: Offers multiple signal outputs to cater to a variety of application requirements
Customizable Solutions: Provides tailored configurations to address specific operational needs

Applications

Industrial Refrigeration and Cooling Systems
Air Conditioning Units
Process Control Equipment
Compressed Air Systems

Product Overview

The 100 Series Transmitter is an advanced, independently designed device tailored for precise pressure measurement in air compressor and refrigeration applications. At its core is a proprietary ceramic sensor, offering excellent resistance to high temperatures and corrosion for unmatched reliability and stability.

With its compact design and superior performance, this transmitter is ideal for monitoring both liquid and gas pressures in industrial environments. It excels in demanding applications, including hydraulic systems, railway transport, petrochemical processes, mechanical automation, and air compression systems.

Every stage of production—spanning research, development, assembly, calibration, and rigorous quality inspection—adheres to international quality standards, ensuring consistent and reliable performance for all customers.

Specifications

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard)； ≤±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What distinguishes Songfast's products from competitors?

Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services for products that extend beyond our standard offerings.
