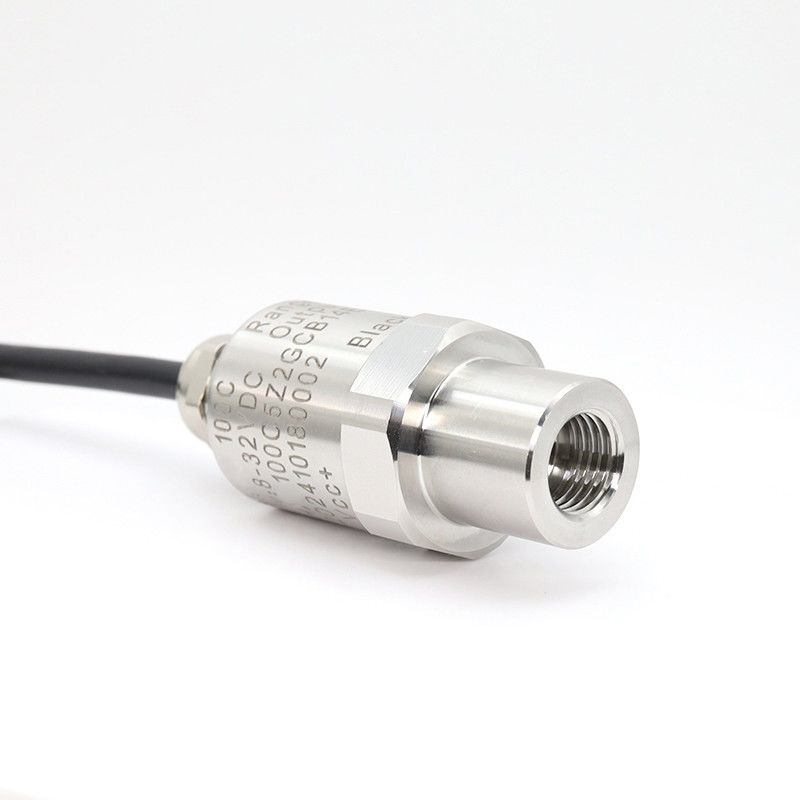

Automatic Shutdown HVAC Differential Pressure Sensor Leak Detection

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Automatic Shutdown HVAC Differential Pressure Sensor

Leak Detection HVAC Differential Pressure Sensor

Leak Detection HVAC Air Pressure Sensor

Product Description

Automatic Shutdown HVAC Differential Pressure Sensor Leak Detection

Accurate and Durable Refrigeration HVAC Pressure Sensor for Industrial Refrigeration and Air Conditioning Units

Key Features

Wide Operating Temperature Range: Delivers reliable performance under extreme conditions, with an operating range of -35℃ to 105℃
Compact and Cost-Effective Design: Designed for minimal space requirements and optimized for economical installations
Advanced Compensation Technology: Utilizes algorithm-driven calibration and correction for highly accurate pressure readings
Exceptional Overload Resistance: Handles up to 150% of full-scale load without compromising functionality
Robust Durability: Built to withstand tough environments, providing excellent impact and wear resistance
Multiple Output Options: Offers a variety of signal outputs to meet diverse application demands
Customizable Configurations: Tailored solutions available to address unique operational and industry-specific needs

Applications

Industrial Refrigeration Systems
Air Conditioning Units
Process Control Equipment
Compressed Air Systems

Product Overview

The 100 Series Transmitter is a state-of-the-art, independently developed solution crafted for precise pressure measurement in air compressor and refrigeration systems. Its core component, a proprietary ceramic sensor, provides exceptional resistance to high temperatures and corrosion, ensuring reliable and stable performance over time.

Compact and efficient, this transmitter is specifically designed to measure both liquid and gas pressures in industrial settings. Its durable construction makes it an excellent choice for challenging applications in sectors such as hydraulic systems, railway transportation, petrochemical processing, mechanical automation, and air compression technologies.

From research and development to production, calibration, and final quality inspection, every stage of the manufacturing process adheres to strict global quality standards, ensuring dependable performance and long-term reliability for every customer.

Specifications

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard)； ≤±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector , Straight Connection
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What distinguishes Songfast's products from competitors?

A: Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

Q2: What official certifications and industry compliance standards has the company obtained?

A: Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

A: Yes, we provide custom development services for products that extend beyond our standard offerings.
