Industrial Water Level Sensor Customize For Engineering Water Pools

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

400C Series Pressure Transm...er.pdf

Pressure Type:

Gauge Pressure, Absolute Pressure

Accuracy:

≤ ±0.5%F.S(Standard)； ≤ ±0.25%F.S；Customizable

Operating Temperature:

-30℃~85℃

Storage Temperature:

-30℃~85℃

Compensation Temperature:

0~60℃

Electrical Connection:

Straight Connection

Housing Materials:

SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable

Sensor Materials:

Diffused Silicon (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP5×0.35mm², φD7.5mm

Response Time:

≤10ms

Protection Rating:

IP68

Measuring Medium:

Compatible With SUS304 Or 316L Stainless Steel

Zero Temperature Drift:

0.05%FS/℃( ≤100kPa）

Long-term Stability:

0.2%F.S±0.05%/year

Overload Pressure:

150%F.S.

Supply Ability:

10000pcs/month

Highlight:

Industrial Water Level Sensor

Water Pools Liquid Level Transducer

Customize Water Level Pressure Sensor

Product Description

Industrial Water Level Sensor for Engineering Water Pools

Advanced liquid level sensors specifically engineered for engineering water pool applications, delivering reliable performance in demanding industrial environments.

Key Features

Wide Operating Temperature: Effective range from -30℃ to 85℃
Compact Design: Excellent cost efficiency
High-Sensitivity Sensor Core: Delivers strong signal transmission
Broad Measurement Range: Optimized for low power consumption
Long-Term Reliability: Maintains stability over time
Robust Interference Resistance: Performs well under challenging conditions
Multiple Signal Outputs: Versatile communication capabilities
Customization Options: Tailored specifications available

Applications

River Reservoir Monitoring
Fire Fighting Water Tanks
Engineering Water Pools
Water Resource Management
Agricultural Irrigation Systems

Product Overview

The 400C Series Transmitter is a cost-effective liquid level measurement solution, developed from the 400A series, featuring a built-in diffused silicon sensor core.

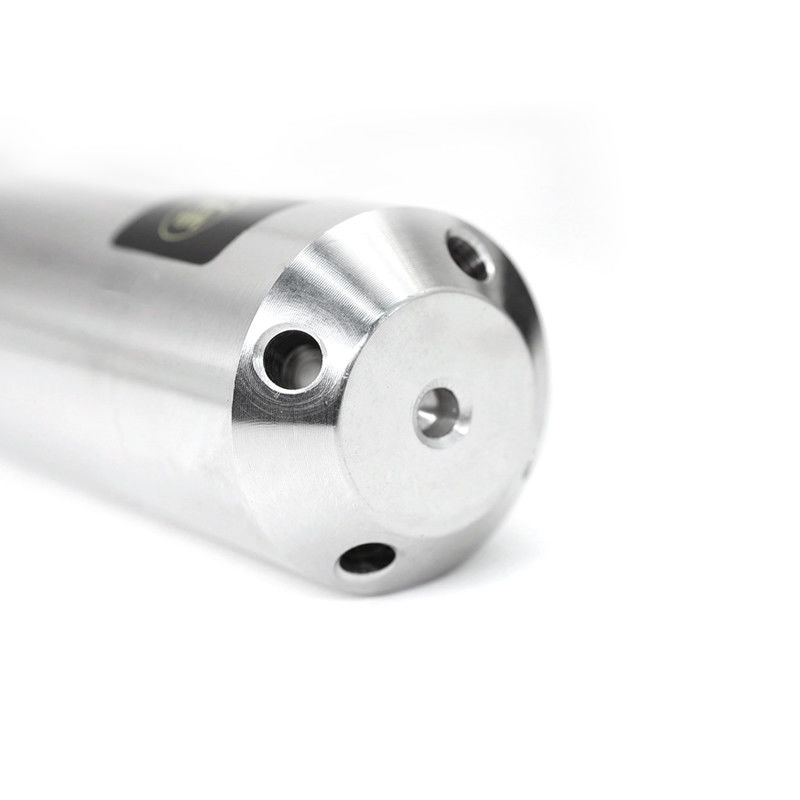

This product incorporates a fluid dynamics design with a unique arc-shaped housing that effectively minimizes medium disturbances, ensuring high reliability. It also features a detachable bottom filter cover to prevent clogging, along with an internal air guide tube and a triple-layer protection system. Compared to the 400A series, the 400C model is more compact, offers enhanced performance, and is highly cost-effective, making it ideal for various harsh environments.

Technical Specifications

Model	400C Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1 m…300 m (Customizable)
Accuracy	≤ ±0.5%F.S (Standard); ≤ ±0.25%F.S; Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio \| RS485
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC / 5V DC \| 3~5.5V DC \| 8~32V DC
Operating Temperature	-30℃~85℃
Storage Temperature	-30℃~85℃
Compensation Temperature	0~60℃
Electrical Connection	Straight Connection
Materials - Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Materials - Sensor	Diffused Silicon (Standard)
Materials - O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Response Time	≤10ms
Protection Rating	IP68
Measuring Medium	Compatible with SUS304 or 316L stainless steel
Zero Temperature Drift	0.05%FS/℃( ≤100kPa)
Long-term Stability	0.2%F.S±0.05%/year
Overload Pressure	150%F.S.

Dimensions and Wiring Configuration

Wiring Definitions

Wire Color	2-wire	3-wire	4-wire
Red	Power (Vcc+)	Power (Vcc+)	Power (Vcc+)
Black	Signal(Iout)	Power (GND)	Power (GND)
Yellow	Ground	Ground	Ground
Green	/	Signal(Vout)	485A
Blue	/	/	485B

Ordering Information

Frequently Asked Questions

What makes Songfast's products stand out from competitors?

Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to our customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

Additionally, we hold over 20 national patents.

Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services tailored to your specific requirements and application needs.
