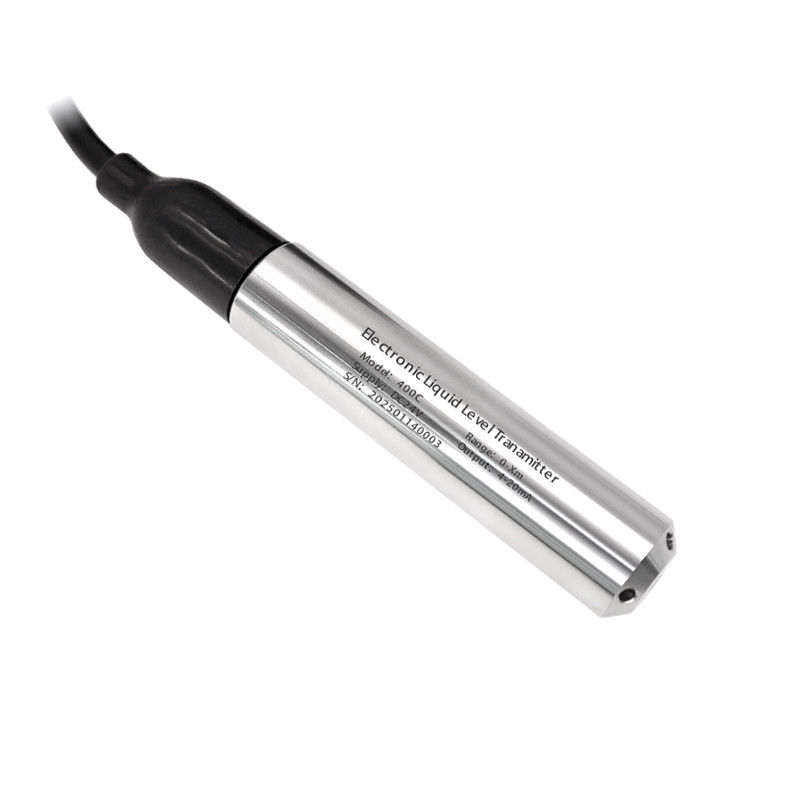

Industrial Well Water Level Sensor Erosion Resistant Straight Connection

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

400C Series Pressure Transm...er.pdf

Pressure Type:

Gauge Pressure, Absolute Pressure

Accuracy:

≤ ±0.5%F.S(Standard)； ≤ ±0.25%F.S；Customizable

Operating Temperature:

-30℃~85℃

Storage Temperature:

-30℃~85℃

Compensation Temperature:

0~60℃

Electrical Connection:

Straight Connection

Housing Materials:

SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable

Sensor Materials:

Diffused Silicon (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP5×0.35mm², φD7.5mm

Response Time:

≤10ms

Protection Rating:

IP68

Measuring Medium:

Compatible With SUS304 Or 316L Stainless Steel

Zero Temperature Drift:

0.05%FS/℃( ≤100kPa）

Long-term Stability:

0.2%F.S±0.05%/year

Overload Pressure:

150%F.S.

Supply Ability:

10000pcs/month

Highlight:

Industrial Well Water Level Sensor

Erosion Resistant Well Water Level Sensor

Straight Connection Water Sensor For Tank

Product Description

Industrial Well Water Level Sensor Erosion Resistant Straight Connection

Liquid Level Sensors for Accurate and Consistent Level Measurement

Professional liquid level sensors designed for precise and reliable level measurement in demanding industrial applications.

Key Features

Wide temperature range: -30℃ to 85℃
Compact structure with excellent cost-effectiveness
High-sensitivity sensor core with strong signal transmission
Wide measurement range with low power consumption
Excellent long-term stability
Strong interference resistance
Multiple signal output options
Customization available for various specifications

Applications

River and reservoir monitoring
Fire fighting water tanks
Engineering water pools
Water resources energy systems
Agricultural irrigation

Product Overview

The 400C Series Transmitter is an economical liquid level measurement product developed from the 400A series, featuring a built-in diffused silicon sensor core. The product incorporates fluid dynamics design with a unique arc-shaped housing that effectively eliminates medium disturbances and ensures high reliability. It includes a detachable bottom filter cover to prevent clogging, along with an internal air guide tube and triple-layer protection process. Compared to the 400A series, the 400C is more compact, offers superior performance, and provides excellent cost-effectiveness, making it suitable for various harsh environments.

Technical Specifications

Parameter	Specification
Model	400C Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1 m…300 m (Customizable)
Accuracy	≤ ±0.5%F.S (Standard); ≤ ±0.25%F.S; Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio \| RS485
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC / 5V DC \| 3~5.5V DC \| 8~32V DC
Operating Temperature	-30℃~85℃
Storage Temperature	-30℃~85℃
Compensation Temperature	0~60℃
Electrical Connection	Straight Connection
Materials - Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Materials - Sensor	Diffused Silicon (Standard)
Materials - O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Response Time	≤10ms
Protection Rating	IP68
Measuring Medium	Compatible with SUS304 or 316L stainless steel
Zero Temperature Drift	0.05%FS/℃( ≤100kPa)
Long-term Stability	0.2%F.S±0.05%/year
Overload Pressure	150%F.S.

Dimensions and Wiring Definitions

Wiring Configuration

Wire Color	2-wire	3-wire	4-wire
Red	Power (Vcc+)	Power (Vcc+)	Power (Vcc+)
Black	Signal (Iout)	Power (GND)	Power (GND)
Yellow	Ground	Ground	Ground
Green	/	Signal (Vout)	485A
Blue	/	/	485B

Ordering Information

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to our customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

Additionally, we hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services tailored to your specific requirements and application needs.
