Customizable Liquid Level Sensors Interference Resistance Water Level Switch

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

400A Series Pressure Transm...er.pdf

Pressure Type:

Gauge Pressure, Absolute Pressure

Accuracy:

≤ ±0.5%F.S(Standard)； ≤ ±0.25%F.S；Customizable

Operating Temperature:

-30℃~85℃

Storage Temperature:

-30℃~85℃

Compensation Temperature:

0~60℃

Electrical Connection:

Straight Connection

Housing Materials:

SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable

Sensor Materials:

Diffused Silicon (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP5×0.35mm², φD7.5mm

Response Time:

≤10ms

Protection Rating:

IP68

Measuring Medium:

Compatible With SUS304 Or 316L Stainless Steel

Zero Temperature Drift:

0.05%FS/℃( ≤100kPa）

Long-term Stability:

0.2%F.S±0.05%/year

Overload Pressure:

150%F.S.

Supply Ability:

10000pcs/month

Highlight:

Customizable Liquid Level Sensors

Interference Resistance Liquid Level Sensors

Customizable Water Level Switch

Product Description

Customizable Liquid Level Sensors Interference Resistance Water Level Switch

Customizable Liquid Level Sensors with Long-Term Stability and Strong Interference Resistance

Key Features

Wide Temperature Range: Operates from -30℃ to 85℃
Compact Design: Cost-effective structure
High-Sensitivity Sensor Core: Delivers strong signal transmission
Extensive Measurement Range: Low power consumption
Long-Term Stability: Reliable performance over time
Strong Interference Resistance: Operates effectively in challenging environments
Multiple Signal Outputs: Versatile communication options
Customization Available: Tailored specifications to meet diverse needs

Applications

River Reservoir Monitoring
Fire Fighting Water Tanks
Engineering Water Pools
Water Resource Management
Agricultural Irrigation Systems

Product Overview

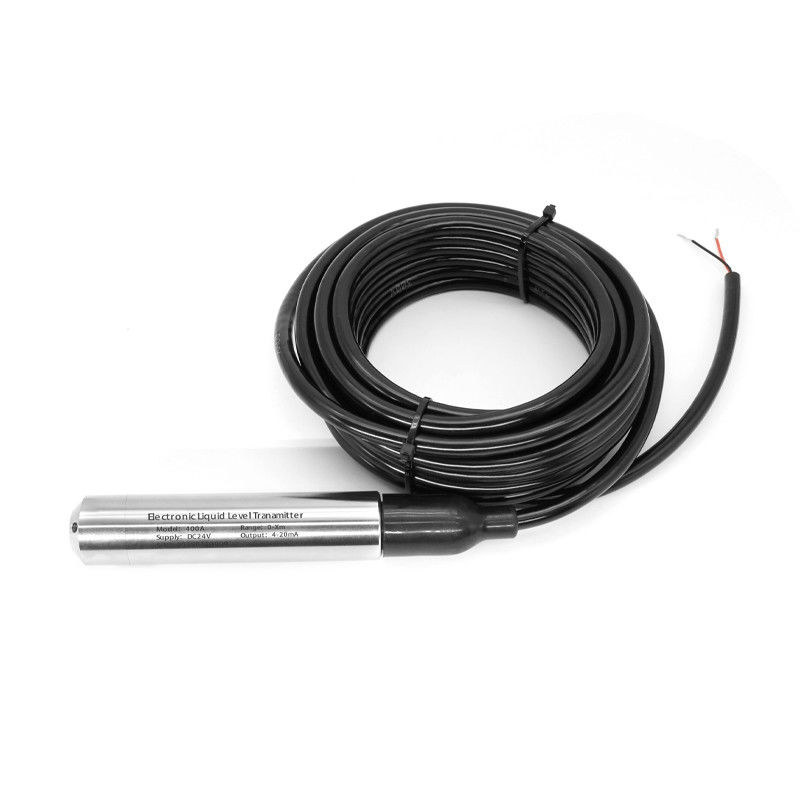

The 400A Series Transmitter is an independently developed solution for liquid level measurement. It features a core sensor with a built-in diffused silicon element.

This product showcases a fluid dynamics design and a unique arc-shaped housing, which reduces medium disturbances and enhances reliability. It also includes a detachable bottom filter cover to prevent clogging, an internal air guide tube, and a triple-layer protection process. Its compact size and exceptional performance make it suitable for various harsh environments.

Every stage of our manufacturing process—from R&D and production assembly to calibration and quality inspection—strictly follows international quality production standards.

Technical Specifications

Model	400A Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1 m…300 m (Customizable)
Accuracy	≤ ±0.5%F.S (Standard); ≤ ±0.25%F.S; Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio \| RS485
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC / 5V DC \| 3~5.5V DC \| 8~32V DC
Operating Temperature	-30℃~85℃
Storage Temperature	-30℃~85℃
Compensation Temperature	0~60℃
Electrical Connection	Straight Connection
Materials	Housing: SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor: Diffused Silicon (Standard) O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Response Time	≤10ms
Protection Rating	IP68
Measuring Medium	Compatible with SUS304 or 316L stainless steel
Zero Temperature Drift	0.05%FS/℃( ≤100kPa)
Long-term Stability	0.2%F.S±0.05%/year
Overload Pressure	150%F.S.

Dimensions and Wiring Definitions

Wiring Definitions

Wire Color	2-wire	3-wire	4-wire
Red	Power (Vcc+)	Power (Vcc+)	Power (Vcc+)
Black	Signal(Iout)	Power (GND)	Power (GND)
Yellow	Ground	Ground	Ground
Green	/	Signal(Vout)	485A
Blue	/	/	485B

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

A: Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to our customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

A: Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

Additionally, we hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

A: Yes, we provide custom development services tailored to your needs.
