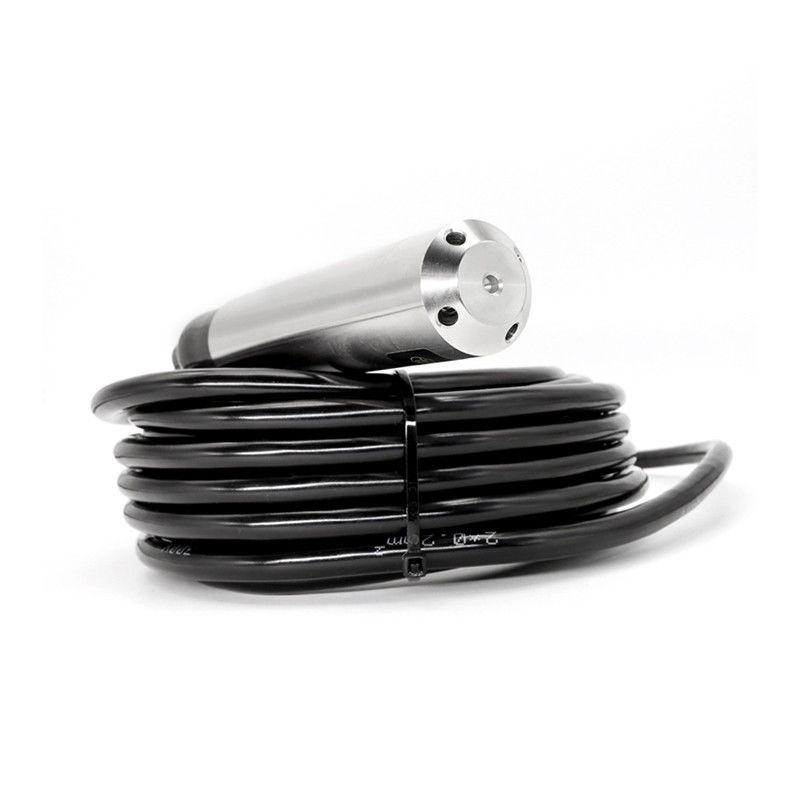

Compact Design Electronic Water Level Sensor For Agricultural Irrigation Systems

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

400A Series Pressure Transm...er.pdf

Pressure Type:

Gauge Pressure, Absolute Pressure

Accuracy:

≤ ±0.5%F.S(Standard)； ≤ ±0.25%F.S；Customizable

Operating Temperature:

-30℃~85℃

Storage Temperature:

-30℃~85℃

Compensation Temperature:

0~60℃

Electrical Connection:

Straight Connection

Housing Materials:

SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable

Sensor Materials:

Diffused Silicon (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP5×0.35mm², φD7.5mm

Response Time:

≤10ms

Protection Rating:

IP68

Measuring Medium:

Compatible With SUS304 Or 316L Stainless Steel

Zero Temperature Drift:

0.05%FS/℃( ≤100kPa）

Long-term Stability:

0.2%F.S±0.05%/year

Overload Pressure:

150%F.S.

Supply Ability:

10000pcs/month

Highlight:

Compact Electronic Water Level Sensor

Agricultural Electronic Water Level Sensor

Irrigation Systems Water Level Transmitter

Product Description

Compact Design Electronic Water Level Sensor For Agricultural Irrigation Systems

Agricultural Irrigation Systems and Liquid Level Sensors featuring wide temperature range operation, compact design, and multiple signal output options for versatile applications.

Key Features

Wide Temperature Range: Operates effectively from -30℃ to 85℃
Compact Design: Excellent cost-effectiveness in a small structure
High-Sensitivity Sensor Core: Ensures robust signal transmission
Extensive Measurement Range: Low power consumption for efficiency
Long-Term Stability: Reliable performance over time
Strong Interference Resistance: Reliable in challenging environments
Multiple Signal Outputs: Versatile communication options
Customization Available: Tailored specifications to meet various needs

Applications

River Reservoir Monitoring
Fire Fighting Water Tanks
Engineering Water Pools
Water Resource Management
Agricultural Irrigation Systems

Product Overview

The 400A Series Transmitter is a fully independent, self-developed solution for liquid level measurement. Its core sensor features a built-in diffused silicon element. Designed with fluid dynamics in mind, it boasts a unique arc-shaped housing that effectively mitigates medium disturbances, ensuring exceptional reliability. Key features include a detachable bottom filter cover to prevent clogging, an internal air guide tube, and a triple-layer protection process. This compact device offers superior performance and cost-effectiveness, making it ideal for harsh environments. Our manufacturing process adheres to international quality production standards, encompassing every step from R&D design and production assembly to calibration and quality inspection.

Technical Specifications

Model	400A Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1 m…300 m (Customizable)
Accuracy	≤ ±0.5%F.S (Standard); ≤ ±0.25%F.S; Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio \| RS485
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC / 5V DC \| 3~5.5V DC \| 8~32V DC
Operating Temperature	-30℃~85℃
Storage Temperature	-30℃~85℃
Compensation Temperature	0~60℃
Electrical Connection	Straight Connection
Materials	Housing: SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Sensor	Diffused Silicon (Standard)
O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Response Time	≤10ms
Protection Rating	IP68
Measuring Medium	Compatible with SUS304 or 316L stainless steel
Zero Temperature Drift	0.05%FS/℃( ≤100kPa)
Long-term Stability	0.2%F.S±0.05%/year
Overload Pressure	150%F.S.

Dimensions and Wiring Definitions

Wiring Definitions

Wire Color	2-wire	3-wire	4-wire
Red	Power (Vcc+)	Power (Vcc+)	Power (Vcc+)
Black	Signal(Iout)	Power (GND)	Power (GND)
Yellow	Ground	Ground	Ground
Green	/	Signal(Vout)	485A
Blue	/	/	485B

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

A: Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to our customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

A: Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

Additionally, we hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

A: Yes, we provide custom development services tailored to your needs.
