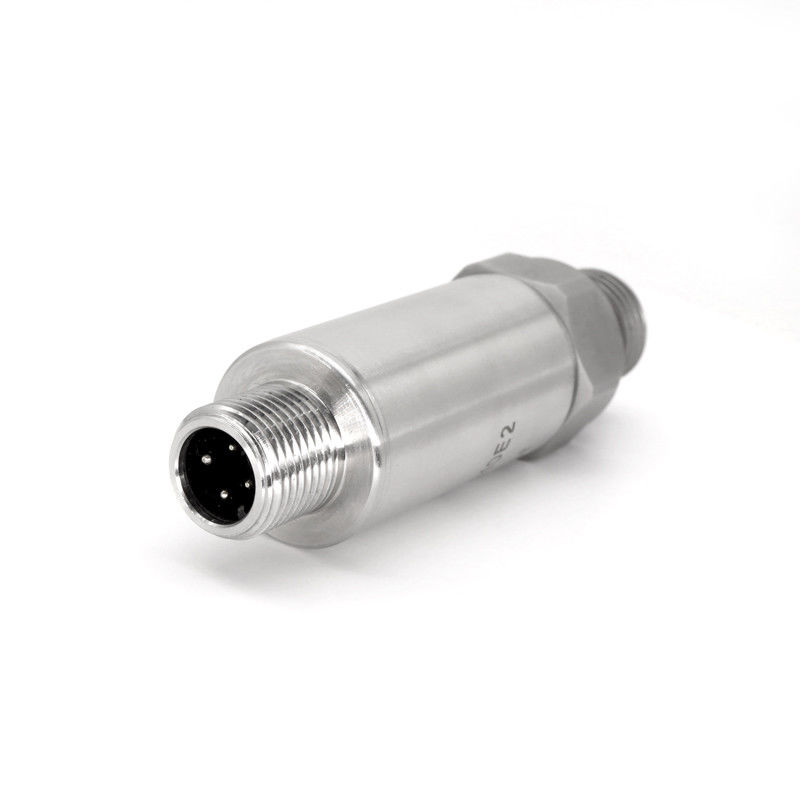

Ceramic Core HVAC Pressure Sensor Custom Refrigeration Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Ceramic Core HVAC Pressure Sensor

Custom HVAC Pressure Sensor

Custom Refrigeration Pressure Transducer

Product Description

Ceramic Core HVAC Pressure Sensor Custom Refrigeration Pressure Transducer

Ideal for Industrial Pressure Measurement Needs Ceramic Core Sensor Custom Solutions Available

Key Features

Wide Operating Temperature Range: Functions effectively in temperatures from -40°C to 85°C
Compact Form Factor: Designed for maximum cost efficiency
Sophisticated Compensation Technology: Utilizes algorithmic compensation for enhanced precision
Robust Overload Capacity: Can endure pressures up to 150% of its maximum rating
High Durability: Built to resist challenging conditions and impacts
Diverse Output Options: Offers various signal outputs for different applications
Tailored Specifications: Custom solutions available to fit specific needs

Applications

Water Resource Management
Process Equipment Control
Mechanical Manufacturing
Petrochemical Sector
Food and Pharmaceutical Industries

Product Overview

The 200 Series Transmitter is an independently developed device designed for a wide array of industrial pressure measurement needs. It incorporates a proprietary ceramic core sensor, renowned for its impressive resistance to temperature fluctuations and corrosion, ensuring consistent stability and dependability.

Thanks to its compact design and high performance, this transmitter excels at measuring pressures in industrial liquids and gases. It is especially well-suited for applications in hydraulic systems, process equipment, machinery manufacturing, as well as the petrochemical and food and pharmaceutical sectors.

Our manufacturing process includes comprehensive research and development, assembly, calibration, and rigorous quality inspections, all in compliance with international quality management standards.

Technical Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0.5~4.5V \| 0.35~2.7V Ratio \| 0.132~4.5V Ratio \| IIC/UART Digital Signal
Supply Voltage	8-32V DC \| 5V DC \| 3-5.5V DC/5VDC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard),Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
