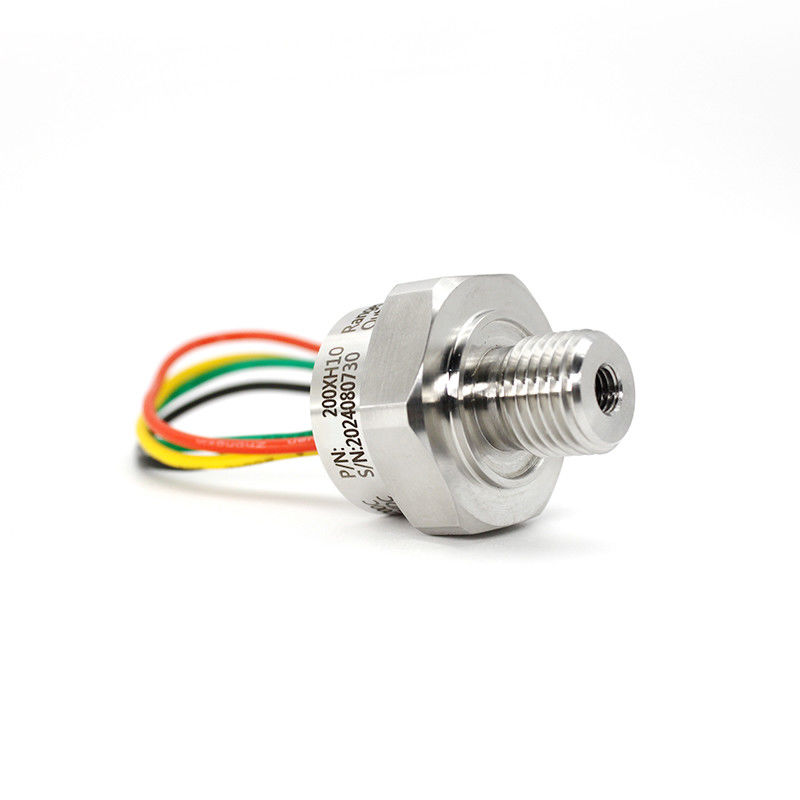

Rustproof HVAC Differential Pressure Transmitter Stable And Smooth Operation

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

HVAC Differential Pressure Transmitter

Stable HVAC Differential Pressure Transmitter

Smooth HVAC Air Pressure Sensor

Product Description

Rustproof HVAC Differential Pressure Transmitter

Innovative Pressure Sensor Refrigeration HVAC Pressure Sensor for Industrial Applications

Core Advantages

Wide Operating Temperature Range: Ensures reliable performance between -40°C and 85°C
Compact & Cost-Effective: Designed for efficient use of space while providing exceptional value
Enhanced Measurement Accuracy: Employs advanced algorithms for compensation and correction, guaranteeing precise readings
Strong Overload Protection: Capable of withstanding pressure spikes up to 150% of its rated capacity
Durable & Resilient: Built to endure high-impact conditions, ideal for challenging operational environments
Versatile Output Options: Provides multiple signal output types to meet various system integration requirements
Customization Options: Configurable to align with specific application needs

Primary Application Areas

Water Resource Management
Industrial Process Control
Mechanical Engineering & Manufacturing
Petrochemical Industry
Food Production & Pharmaceutical Manufacturing

Product Overview

The 200 Series Transmitter is our innovative solution for a diverse range of industrial pressure measurement applications. It features a proprietary ceramic core sensor known for its outstanding thermal and corrosion resistance, ensuring long-term stability and reliability. With its compact design and high performance, this transmitter is ideal for accurately measuring the pressure of both industrial liquids and gases. It is particularly effective in hydraulic systems, process machinery, general manufacturing, petrochemical operations, and food and pharmaceutical sectors. Every phase of our production—from initial research and development, through assembly and careful calibration, to final quality assurance—adheres strictly to established international quality management standards.

Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0.5~4.5V \| 0.35~2.7V Ratio \| 0.132~4.5V Ratio \| IIC/UART Digital Signal
Supply Voltage	8-32V DC \| 5V DC \| 3-5.5V DC/5VDC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard),Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
