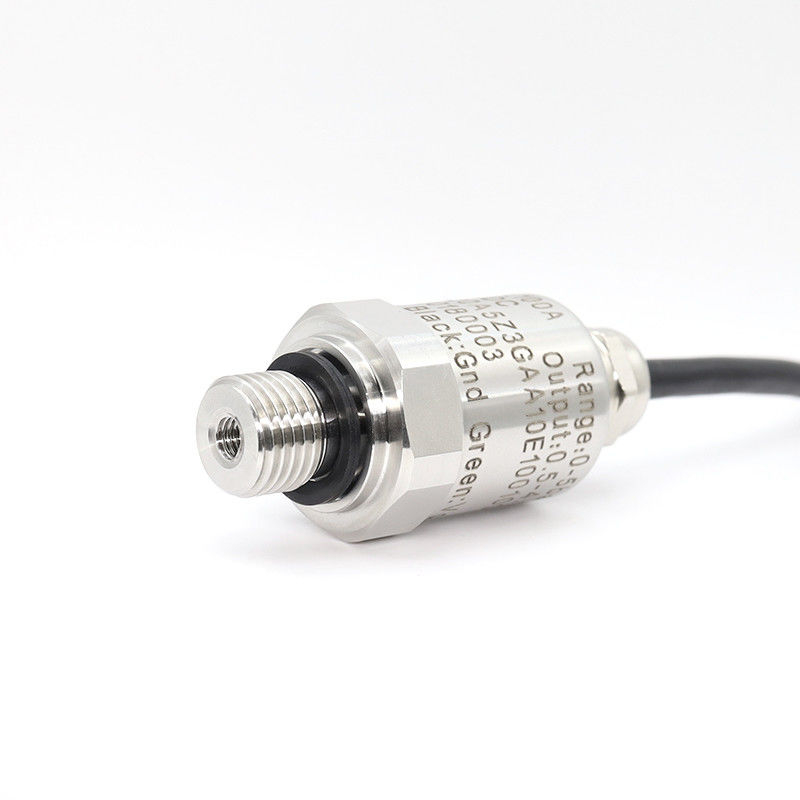

Customized HVAC Pressure Sensor Lightweight Industrial Pressure Transmitter

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Customized HVAC Pressure Sensor

Lightweight HVAC Pressure Sensor

Customized Industrial Pressure Transmitter

Product Description

Customizable Specifications Refrigeration HVAC Pressure Sensor for Tailored Solutions Industrial Transmitter

Key Features

Wide Temperature Range: Operates efficiently from -35℃ to 105℃.
Compact Design: Crafted for both cost-effectiveness and space optimization.
Advanced Compensation Technology: Features algorithmic compensation and correction for superior accuracy.
Exceptional Overload Resistance: Can endure up to 150% of the full-scale overload.
High Impact Resistance: Built to withstand demanding environments.
Multiple Output Options: Offers versatile signal outputs suitable for various applications.
Customizable Specifications: Tailored solutions designed to meet specific requirements.

Applications

Industrial Refrigeration Units
Air Conditioning Systems
Process Control Systems
Compressed Air Systems

Product Description

The 100 Series Transmitter is a self-contained and independently developed device specifically designed for pressure applications in air compressor refrigeration. Its core sensor employs a proprietary ceramic design that guarantees excellent resistance to temperature fluctuations and corrosion, along with outstanding stability and reliability.

This compact transmitter is adept at measuring both industrial liquids and gases, making it ideal for industries such as hydraulic energy, railway transport, petrochemicals, mechanical control, and air compression systems.

Our manufacturing process—from research and development through assembly, calibration, and quality inspection—adheres strictly to international production quality standards.

Customized HVAC Pressure Sensor Lightweight Industrial Pressure Transmitter 0

Speciﬁcations

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard))； ≤±1%F.S；Customizable
Electrical Performance	2-wire		3-wire
Output Signal	4~20mA		0~5V	0~10V	0.5~4.5V	10~90% Ratio
Supply Voltage	8~32V DC		8~32V DC	12~32V DC	8~32V DC/5V DC	3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector , Straight Connection
Pressure Connection	Internal Thread	7/16~20 UNF
	External Thread	1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
	Customizable	Thread speciﬁcations can be customized according to customer requirements
Materials	Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
	Sensor	Ceramic (Standard)
	O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Customized HVAC Pressure Sensor Lightweight Industrial Pressure Transmitter 2

Dimensions and Wiring Deﬁnitions

Wiring Deﬁnitions

Ordering Guide

FAQ

Q1: What distinguishes Songfast's products from competitors?

A: Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

Q2: What official certifications and industry compliance standards has the company obtained?

A: Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

A: Yes, we provide custom development services for products that extend beyond our standard offerings.
