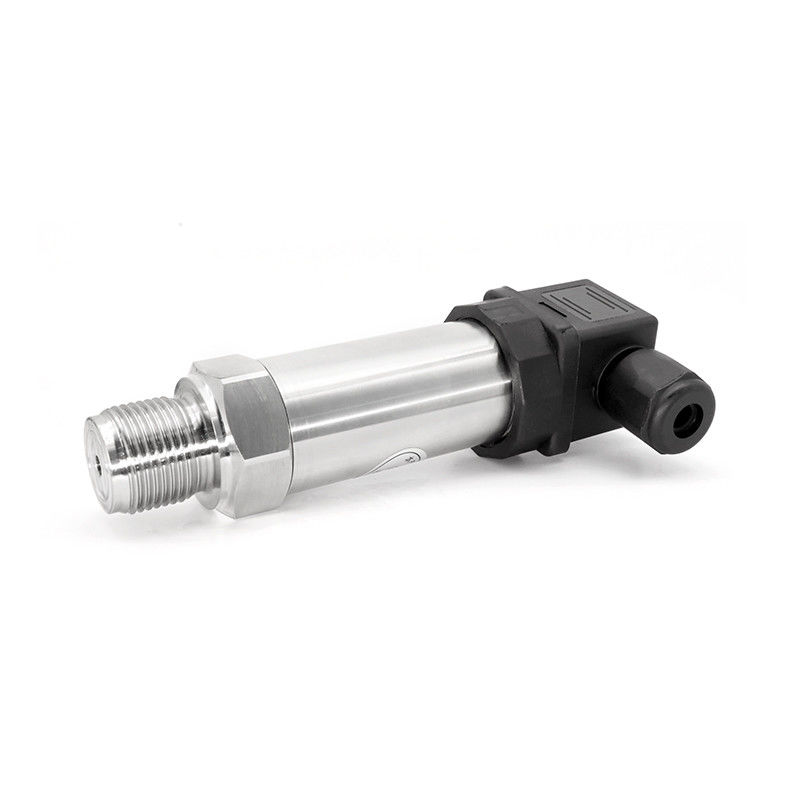

Customizable Ceramic Pressure Transmitter Industrial Ceramic Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Customizable Ceramic Pressure Transmitter

Industrial Ceramic Pressure Transmitter

Customizable Ceramic Pressure Transducer

Product Description

Customizable Ceramic Pressure Transmitter Industrial Ceramic Pressure Transducer

Customizable Specifications Ceramic Pressure Sensor for Industrial Applications

Key Features

Wide Temperature Range: Operates efficiently between -40℃ and 85℃
Compact Design: Engineered for optimal cost-effectiveness
Advanced Compensation Technology: Employs algorithmic compensation and correction for improved accuracy
Overload Resistance: Capable of handling up to 150% of the full-scale overload
High Impact Durability: Constructed to withstand demanding conditions
Multiple Output Options: Provides versatile signal outputs for various applications
Customizable Specifications: Solutions designed to meet specific requirements

Applications

Water Resource Management
Process Equipment
Mechanical Manufacturing
Petrochemical Industry
Food and Pharmaceutical Sectors

Product Overview

The 200 Series Transmitter is a self-developed device tailored for a diverse range of industrial pressure applications. It features a proprietary ceramic core sensor that offers exceptional resistance to temperature variations and corrosion, ensuring both stability and reliability.

With its compact design and superior performance, this transmitter is ideal for measuring industrial liquids and gases. It is particularly suited for applications in hydraulic energy, process equipment, machinery manufacturing, and the petrochemical and food and pharmaceutical industries.

Our manufacturing process encompasses research and development, production assembly, calibration, and quality inspection, all adhering strictly to international quality system standards.

Technical Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0.5~4.5V \| 0.35~2.7V Ratio \| 0.132~4.5V Ratio \| IIC/UART Digital Signal
Supply Voltage	8-32V DC \| 5V DC \| 3-5.5V DC/5VDC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard),Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
