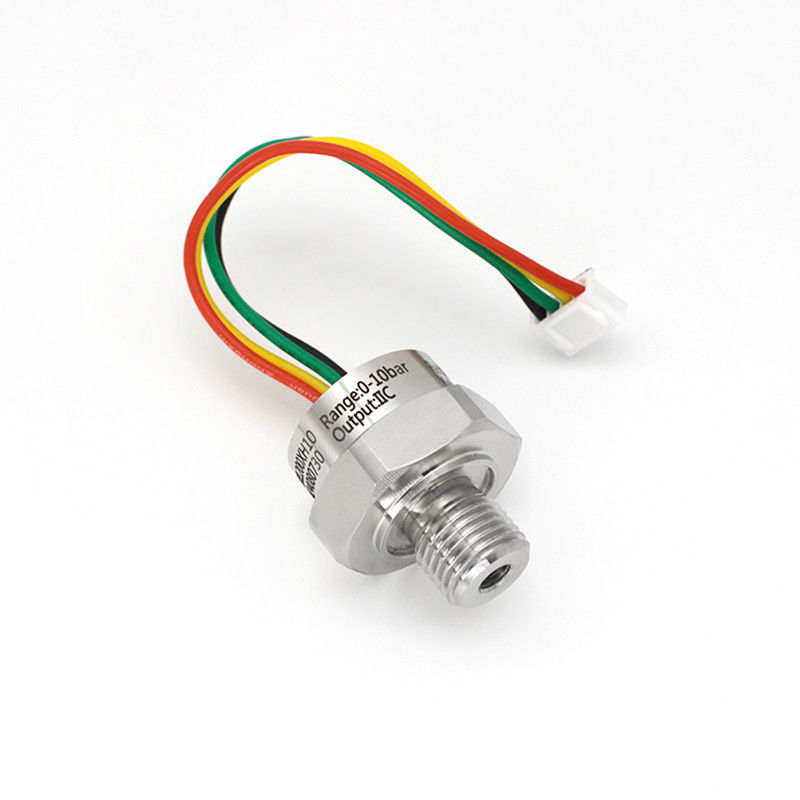

Overload Protection Ceramic Pressure Transducer Customize For Mechanical Engineering

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Overload Protection Ceramic Pressure Transducer

Mechanical Engineering Ceramic Pressure Transducer

Customize Stainless Steel Pressure Sensor

Product Description

Overload Protection Ceramic Pressure Transducer Customize For Mechanical Engineering

Robust Overload Protection with Ceramic Pressure Sensor for Mechanical Engineering Applications

Core Advantages

Broad Operating Temperature: Reliable performance guaranteed from -40°C up to 85°C
Space-Saving & Economical: A compact form factor designed for outstanding value and efficiency
Enhanced Accuracy via Compensation: Utilizes sophisticated algorithms for compensation and correction, ensuring precise measurements
Robust Overload Protection: Built to withstand pressure surges up to 150% of its full-scale rating
Resilient & Durable: Engineered for high impact resistance, suitable for demanding operational environments
Flexible Output Signals: Offers a variety of signal output types to accommodate diverse system integration needs
Customization Available: Can be configured with specific parameters to align with unique application demands

Primary Application Areas

Water Resource Monitoring & Management
Industrial Process Control Systems
Mechanical Engineering & Manufacturing
Petrochemical Processing
Food Processing & Pharmaceutical Production

Product Overview

The 200 Series Transmitter represents our independently engineered solution for a wide array of industrial pressure measurement tasks. At its heart lies a proprietary ceramic core sensor, selected for its exceptional thermal and corrosion resistance, which underpins the device's long-term stability and dependability. Its combination of a compact footprint and high performance makes this transmitter an excellent choice for accurately gauging the pressure of industrial liquids and gases alike. It excels in sectors including hydraulic power systems, process machinery, general manufacturing, petrochemical operations, and the food and pharmaceutical industries. Every stage of our production cycle, from initial R&D and assembly through meticulous calibration and final quality assurance checks, rigorously conforms to established international quality management standards.

Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0.5~4.5V \| 0.35~2.7V Ratio \| 0.132~4.5V Ratio \| IIC/UART Digital Signal
Supply Voltage	8-32V DC \| 5V DC \| 3-5.5V DC/5VDC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard),Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
