Ceramic Pressure Transmitter

Smart Ceramic Capacitive Pressure Sensor high Compatibility for Automotive

All Category

Air Compressor Pressure Sensor

Liquid Level Sensors

Mrs. Jenny Huang

songfast88@gmail.com

+8613580900852

Contact Now

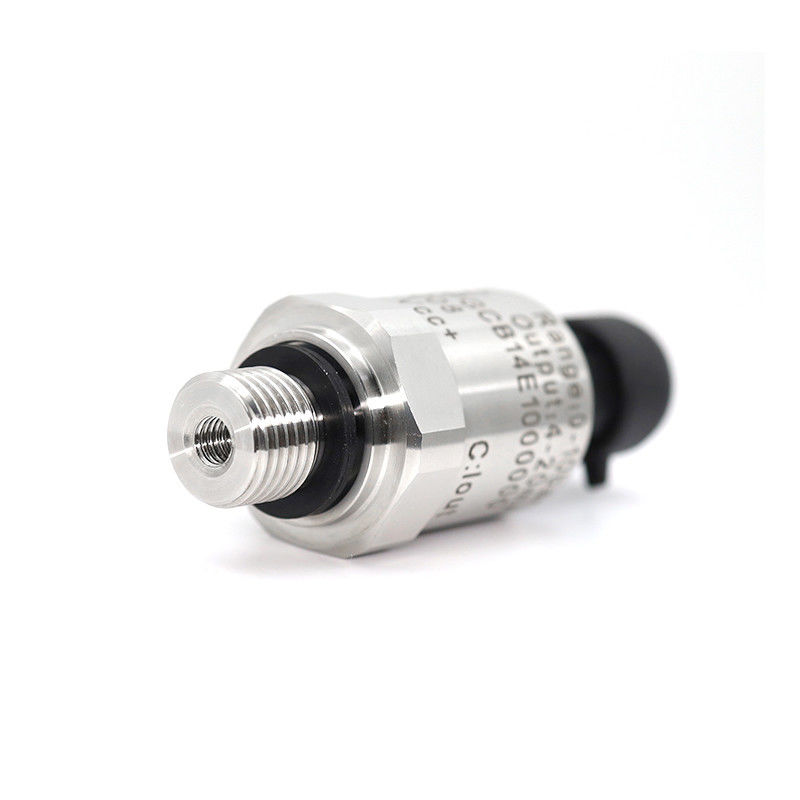

Smart Ceramic Capacitive Pressure Sensor high Compatibility for Automotive

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Smart Ceramic Capacitive Pressure Sensor

Automotive Ceramic Capacitive Pressure Sensor

Smart Industrial Pressure Transducer

Product Description

Advanced Ceramic Pressure Sensor Wide Temperature Range Superior Overload Capacity Flexible Output Options

Key Features

Wide Operating Temperature Range: Functions reliably across extreme conditions, from -35℃ to 105℃.
Space-Saving Design: Optimized for cost efficiency and compact installations.
Advanced Compensation Technology: Utilizes algorithmic compensation and correction to deliver precise measurements.
Superior Overload Capacity: Withstands up to 150% of the full-scale load without compromising functionality.
High Durability: Engineered to endure harsh environments with excellent impact resistance.
Flexible Output Options: Supports multiple signal outputs to suit diverse application needs.
Customizable Configurations: Offers tailored specifications to meet unique customer requirements.

Applications

The 100 Series Transmitter is versatile and suitable for a wide range of industries, including:

Industrial Refrigeration Systems
Air Conditioning Units
Process Control Systems
Compressed Air Equipment

Product Overview

The 100 Series Transmitter is a cutting-edge, independently developed solution designed specifically for pressure measurement in air compressor refrigeration systems. At its core is a proprietary ceramic sensor that delivers outstanding resistance to high temperatures and corrosion, ensuring long-term stability and reliability.

This compact and efficient transmitter is ideal for measuring both liquids and gases in industrial settings. Its robust design makes it a perfect fit for demanding applications across industries such as hydraulic systems, railway transportation, petrochemicals, mechanical control, and air compression technologies.

Our production process adheres to strict global quality standards at every stage, from research and development to assembly, calibration, and final inspection. This commitment ensures consistent performance and reliability for all customers.

Smart Ceramic Capacitive Pressure Sensor high Compatibility for Automotive 0

Speciﬁcations

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard))； ≤±1%F.S；Customizable
Electrical Performance	2-wire		3-wire
Output Signal	4~20mA		0~5V	0~10V	0.5~4.5V	10~90% Ratio
Supply Voltage	8~32V DC		8~32V DC	12~32V DC	8~32V DC/5V DC	3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector , Straight Connection
Pressure Connection	Internal Thread	7/16~20 UNF
	External Thread	1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
	Customizable	Thread speciﬁcations can be customized according to customer requirements
Materials	Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
	Sensor	Ceramic (Standard)
	O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Smart Ceramic Capacitive Pressure Sensor high Compatibility for Automotive 2

Dimensions and Wiring Deﬁnitions

Wiring Deﬁnitions

Ordering Guide

FAQ

Q1: What distinguishes Songfast's products from competitors?

A: Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

Q2: What official certifications and industry compliance standards has the company obtained?

A: Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

A: Yes, we provide custom development services for products that extend beyond our standard offerings.
