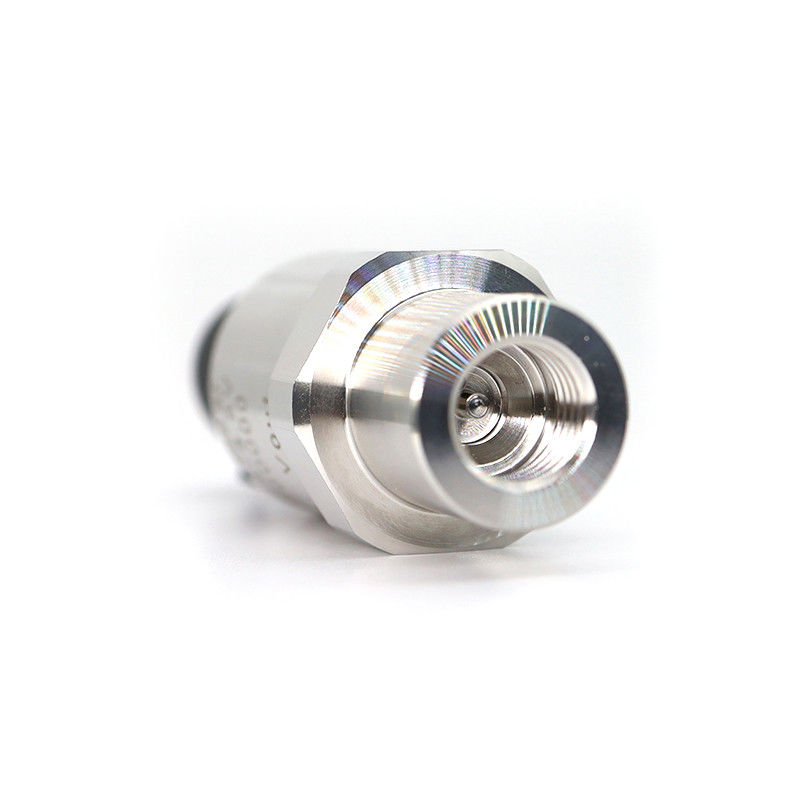

Easy Setup Ceramic Pressure Transmitter Space Saving Ceramic Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Easy Setup Ceramic Pressure Transmitter

Space Saving Ceramic Pressure Sensor

Space Saving Ceramic Pressure Transducer

Product Description

Easy Setup Ceramic Pressure Transmitter Space Saving Ceramic Pressure Transducer

Customizable Specifications Ceramic Pressure Sensor for Unique Requirements in Industrial Settings

Key Features

Wide Temperature Range: Functions efficiently within -35℃ to 105℃
Compact Design: Crafted for cost-efficiency and space-saving installations
Advanced Compensation Technology: Utilizes algorithmic compensation and correction for superior accuracy
Exceptional Overload Resistance: Handles up to 150% of full-scale overload
High Impact Resistance: Built to endure challenging environments
Multiple Output Options: Offers versatile signal outputs for a variety of applications
Customizable Specifications: Provides tailored solutions to meet unique requirements

Applications

Industrial Refrigeration Units
Air Conditioning Systems
Process Control Systems
Compressed Air Systems

Product Description

The 100 Series Transmitter is an independent, self-contained solution specifically designed for pressure measurement in air compressor refrigeration systems. Its core sensor features a proprietary ceramic construction, ensuring excellent resistance to high temperatures and corrosion, along with remarkable stability and reliability. This compact transmitter is adept at measuring both liquids and gases in industrial settings, making it suitable for sectors such as hydraulic energy, railway transport, petrochemicals, mechanical control, and air compression systems. Our manufacturing process adheres to strict international quality standards at every stage—from research and development to assembly, calibration, and quality inspection—ensuring consistent performance and reliability for all customers.

Specifications

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard)； ≤±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector , Straight Connection
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread speciﬁcations can be customized according to customer requirements
Materials	Housing \| SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What distinguishes Songfast's products from competitors?

Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services for products that extend beyond our standard offerings.
