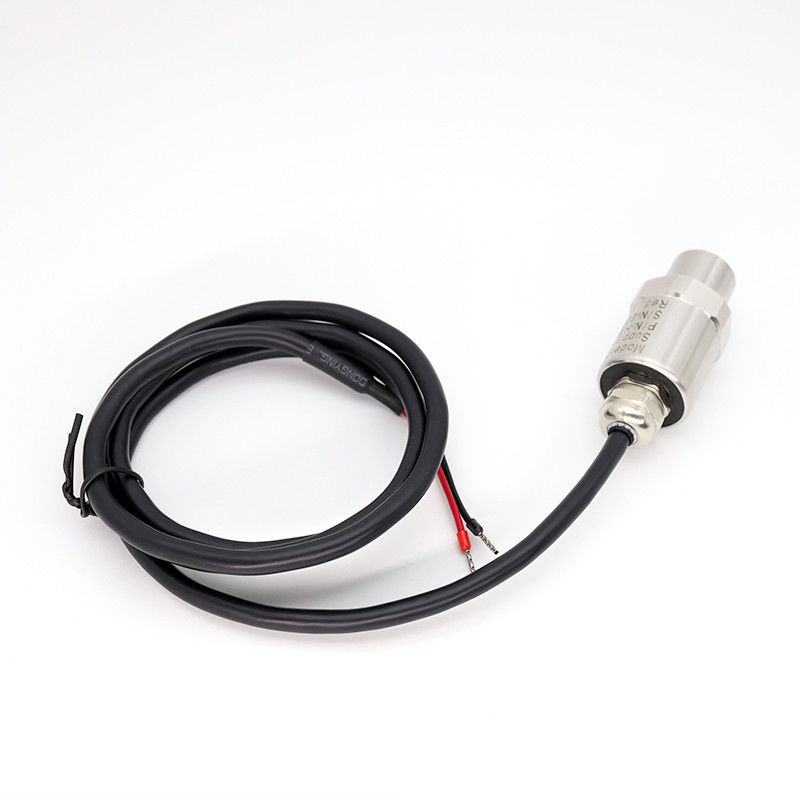

Flexible Ceramic Pressure Transmitter Portable Ceramic Pressure Sensor

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Portable Ceramic Pressure Sensor

Flexible Ceramic Pressure Sensor

Flexible Ceramic Pressure Transmitter

Product Description

Flexible Ceramic Pressure Transmitter Portable Ceramic Pressure Sensor

Compact Ceramic Pressure Sensor Wide Operating Temperature Range Advanced Compensation Technology Flexible Output Options

Key Features

Wide Operating Temperature Range: Reliable performance in extreme conditions, from -35℃ to 105℃
Space-Saving Design: Optimized for cost-effectiveness and compact installations
Advanced Compensation Technology: Employs algorithmic compensation and correction for precise measurements
Superior Overload Capacity: Can withstand loads up to 150% of full scale without losing functionality
High Durability: Built to endure harsh environments with excellent impact resistance
Flexible Output Options: Supports various signal outputs to accommodate diverse application needs
Customizable Configurations: Tailored specifications available to meet specific customer requirements

Applications

Industrial Refrigeration Systems
Air Conditioning Units
Process Control Systems
Compressed Air Equipment

Product Overview

The 100 Series Transmitter is an innovative, independently developed solution designed specifically for pressure measurement in air compressor refrigeration systems. It features a proprietary ceramic sensor that offers exceptional resistance to high temperatures and corrosion, ensuring long-term stability and reliability.

This compact and efficient transmitter excels in measuring both liquids and gases within industrial environments. Its robust construction makes it ideal for demanding applications across sectors such as hydraulic systems, railway transportation, petrochemicals, mechanical control, and air compression technologies.

Our manufacturing process adheres to rigorous global quality standards at every stage—from research and development to assembly, calibration, and final inspection. This dedication guarantees consistent performance and reliability for all customers.

Specifications

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard)； ≤±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

What distinguishes Songfast's products from competitors?

Our technical team has over 20 years of experience in the sensor industry. We deliver rapid, professional solutions tailored to customer application scenarios and welcome personalized customization requests. With a dedicated quality management team, we ensure strict quality control while maintaining a 30-day lead time for delivery.

What official certifications and industry compliance standards has the company obtained?

Our certifications include ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental), along with over 20 national patents.

Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services for products that extend beyond our standard offerings.
