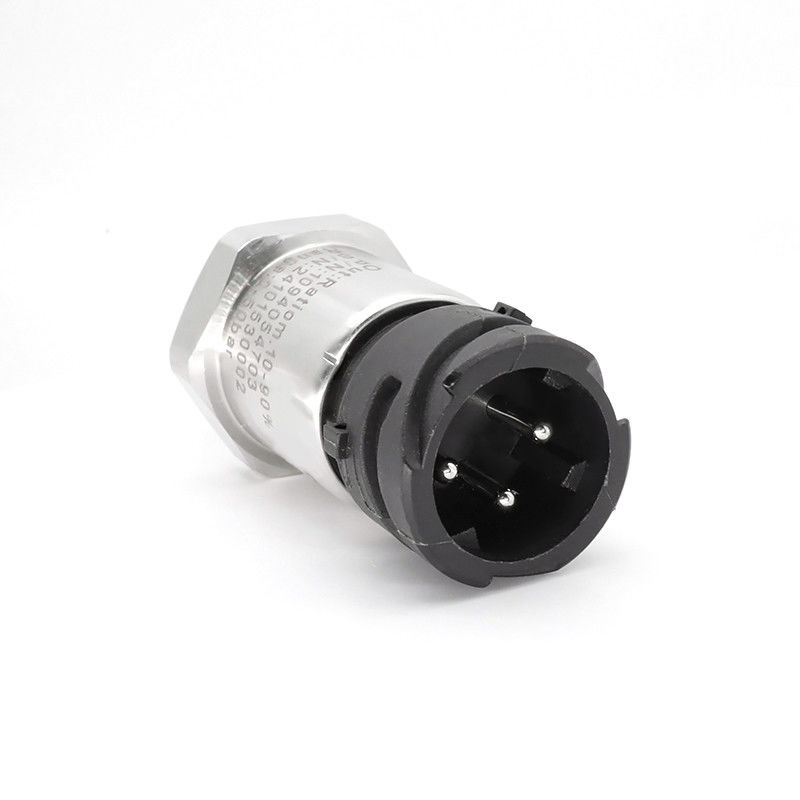

Sturdy Ceramic Pressure Transmitter Rust Prevention Long Lasting Highly Precise

Brand Name:	SongFast
MOQ:	500pcs
Price:	$7.80 - $9.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100-E Series Pressure Trans...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Sturdy Ceramic Pressure Transmitter

Rust Prevention Ceramic Pressure Transmitter

Sturdy Industrial Pressure Transducer

Product Description

Sturdy Ceramic Pressure Transmitter

Rust Prevention | Long Lasting | Highly Precise

Sturdy Ceramic Pressure Sensor for Air Compressor System with Wide Temperature Range and Exceptional Overload Resistance

Key Features

Wide Temperature Range: Operates from -40℃ to 135℃
Compact Design: Engineered for superior cost-effectiveness
Advanced Compensation Technology: Utilizes algorithm compensation and correction for enhanced performance
Exceptional Overload Resistance: Capable of withstanding 400% of full scale overload
High Impact Durability: Resilient against harsh conditions
Multiple Output Options: Versatile signal outputs for various applications
Customizable Specifications: Tailored to meet specific customer needs

Applications

Air Compressor Systems

Product Overview

The 100E Series Transmitter is an independently developed pressure measurement device specifically designed for air compressors. Its core sensor features a proprietary ceramic design, ensuring high resistance to temperature and corrosion, as well as exceptional stability and reliability.

This compact transmitter excels in performance, making it ideal for air compressor systems. It is noted for its high overload and burst pressure capabilities, all while maintaining cost-effectiveness and a small footprint.

Technical Specifications

Model	100E Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-3...70bar (Customizable)
Accuracy	≤±0.50%F.S.(Standard); ≤±1%F.S; Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3~5.5V DC
Operating Temperature	-40℃~135℃
Storage Temperature	-40℃~135℃
Electrical Connection	Aviation connector (DIN72582-1); Customizable
Pressure Connection	External Thread \| 1/4"-18NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable	Thread specifications can be customized according to customer requirements
Materials	Housing: SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor: Ceramic flat film (Standard) O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤20ms
Overload Pressure	400%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	>600% F.S.
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
