Ceramic Pressure Sensor

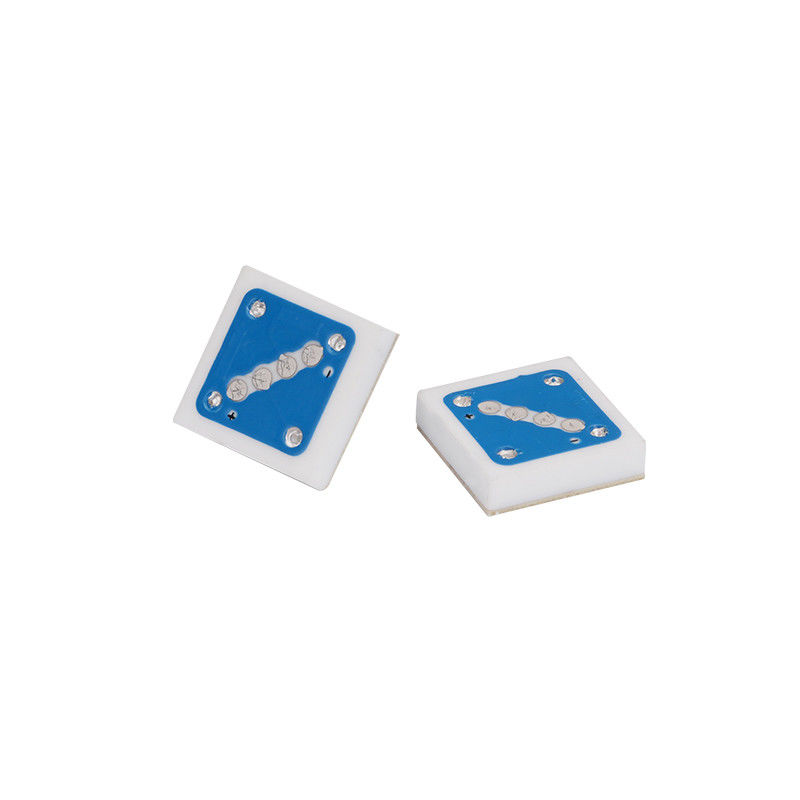

High Elasticity Diaphragm Ceramic Pressure Sensor Data Acquisition Ceramic Pressure Transducer

All Category

Air Compressor Pressure Sensor

Industrial Pressure Sensor

Water Level Transmitter

Flush Diaphragm Pressure Sensor

HVAC Pressure Sensor

Ceramic Pressure Transmitter

Ceramic Pressure Sensor

Pressure Sensor Module

Liquid Level Sensors

Mrs. Jenny Huang

songfast168@gmail.com

+8613580900852

Contact Now

High Elasticity Diaphragm Ceramic Pressure Sensor Data Acquisition Ceramic Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

RS123A 12×12mm Flush Diaph...r.docx

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

High Elasticity Diaphragm Ceramic Pressure Sensor

Data Acquisition Ceramic Pressure Sensor

Data Acquisition Ceramic Pressure Transducer

Product Description

High Elasticity Diaphragm Ceramic Pressure Sensor

High-performance pressure sensor core engineered for optimal performance in high-impact pressure conditions

Main Features

Patented Circuit Layout: Innovative circuit design for optimal performance
Unique Structural Design: Tailored architecture enhancing durability and functionality
Ultra-High Overload and Burst Pressure: Engineered for high-impact pressure conditions
Wide Temperature Range: Versatile applicability across various environments
High-Elasticity Diaphragm: Improves sensitivity, ensuring high-precision measurements
Supports Accurate Data Acquisition: Facilitates precise and reliable data collection

Product Parameters

Series Name	RS123 Series
Type	Flush diaphragm
Size (Length × Width × Height)	12 × 12 × 3.0 mm
Supply Voltage	2-30 V DC
Bridge Road Impedance	5.0 kΩ ± 30%
TCR	≤ 100 ppm/℃ @ -40℃~135℃
Operating Temperature	-40℃~135℃
Storage Temperature	-40℃~150℃
Temperature Drift	Tco & Tcs 0.03% FS/℃ Max / Tco & Tcs 0.05% FS/℃ optional
Nonlinearity	0.25% FS Max
Hysteresis & Repeatability	0.25% FS Max
Zero Offset	0 ± 0.4 mV/V
Sensitivity	2.0-4.0 mV/V, Typ: 3.0 mV/V/FS
Response Time	＜ 2 mS
Insulation Resistance	＞ 2 KV
Zero-point Long Term Stability @25℃	Zero @25℃: ＜0.25 FSO (no time accumulation)
Cycle Life	5 million pressure cycles @ 2-5 Hz, 0~full scale pressure~0, 15~35℃

Product Range - RS123A Series

Product Model	Working Pressure Range	Pressure Type	Overload Pressure	Burst Pressure
RS123A005C	0-5 Bar	Gauge	＞ 15 Bar	＞ 25 Bar
RS123A010C	0-10 Bar	Gauge/Sealed Gauge	＞ 25 Bar	＞ 40 Bar
RS123A020C	0-20 Bar	Gauge/Sealed Gauge	＞ 40 Bar	＞ 60 Bar
RS123A030C	0-30 Bar	Gauge/Sealed Gauge	＞ 60 Bar	＞ 100 Bar
RS123A050C	0-50 Bar	Sealed Gauge	＞ 100 Bar	＞ 150 Bar
