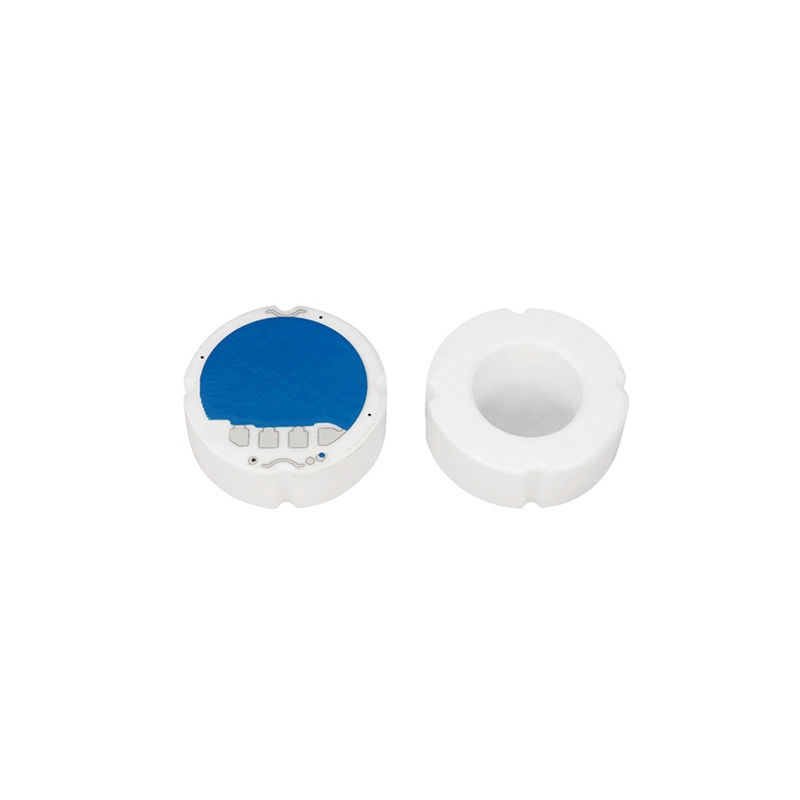

Sensitivity Ceramic Pressure Sensor Accurate Monitoring Ceramic Pressure Transducer

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

CPS18350G Round 18mm Concav...50.pdf

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

Sensitivity Ceramic Pressure Sensor

Monitoring Ceramic Pressure Sensor

Monitoring Ceramic Pressure Transducer

Product Description

Sensitivity Ceramic Pressure Sensor Accurate Monitoring Ceramic Pressure Transducer

Enhanced Ceramic Pressure Sensor Core for Accurate Pressure Monitoring

Main Features

Ceramic base with high elasticity mold
Excellent corrosion and wear resistance
Shock resistant construction
Wide operating temperature range
Internal active temperature compensation with low temperature drift coefficient
Compact size for easy packaging and integration
Patented circuit layout design

Product Parameters

Parameters	Electrical Characteristics
Series Name	CPS18635G/ CPS350G
Type	Monolithic
Size (diameter x height)	φ186.35 mm/ φ183.50mm
Supply voltage	2-30 V DC
Bridge road impedance	※10.0kΩ ± 30%
TCR	≤ 100 ppm/℃@-40℃~125 ℃
Operating temperature	-40 ℃~135℃
Storage temperature	-40℃~150 ℃
Temperature drift	※ Tco&Tcs 0.02%FS/℃ Max
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Zero offset	※0±0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time	＜ 2mS
Insulation resistance	＞ 2KV
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range

CPS18635G / CPS18350G - 6.35mm Series

Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18635G002C	0-2 Bar	2	4
CPS18635G005C	0-5 Bar	10	15
CPS18635G010C	0-10 Bar	20	30
CPS18635G016C	0-16 Bar	32	48
CPS18635G020C	0-20 Bar	40	60
CPS18635G025C	0-25 Bar	50	75
CPS18635G030C	0-30 Bar	60	90
CPS18635G050C	0-50 Bar	100	150
CPS18635G100C	0-100 Bar	200	300
CPS18635G200C	0-200 Bar	300	500
CPS18635G300C	0-300 Bar	450	600
CPS18635G400C	0-400 Bar	600	/
CPS18635G600C	0-600 Bar	800	/

CPS18350G - 3.50mm Series

Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18350G005C	0-5 Bar	10	15
CPS18350G010C	0-10 Bar	20	30
CPS18350G020C	0-20 Bar	40	60
CPS18350G030C	0-30 Bar	60	90
CPS18350G100C	0-100 Bar	200	300

Accurate Pressure Measurements

The CPS18635G and CPS18350G pressure sensors provide precise pressure readings, ensuring reliable operation in automotive and industrial systems. These sensors are ideal for applications like tire pressure gauges and engine oil pressure sensors, where accuracy is critical.

Versatile Applications

These sensors are perfect for use in various systems such as automotive diagnostics (manifold absolute pressure sensor), HVAC systems (pressure sensor for air conditioners), and water pumps (pressure sensor for water pump). Their versatility ensures they can be integrated into different setups without issues.

Durable and Reliable

Constructed from high-quality materials, the CPS18635G and CPS18350G sensors are built to withstand challenging environments. These sensors are resistant to moisture, chemicals, and harsh temperatures, ensuring they perform reliably in industrial and automotive systems.

Industry-Leading Manufacturing

Manufactured by trusted pressure sensor manufacturers, these sensors meet high standards of quality and performance. Whether you're looking for pressure transducer manufacturers or a reliable pressure sensor for air conditioners, the CPS18635G and CPS18350G are your go-to choice.

Frequently Asked Questions

What makes Songfast's products stand out from competitors?

Songfast distinguishes itself through:

Extensive Experience: Our technical team possesses over 20 years of experience in the sensor industry.
Tailored Solutions: We provide rapid, professional solutions customized to meet specific customer application scenarios.
Personalized Customization: We welcome personalized customization requests to ensure optimal product fit.
Stringent Quality Control: Our dedicated production quality management team ensures strict quality control throughout the manufacturing process.
Efficient Delivery: We maintain a 30-day lead time for product delivery.

What official certifications and industry compliance standards has the company obtained?

Songfast holds the following certifications and adheres to these standards:

ISO 9001 (Quality Management System)
IATF 16949 (Automotive Quality Management System)
ISO 45001 (Occupational Health and Safety Management System)
ISO 14001 (Environmental Management System)
20+ National Patents

Do you offer custom development for new products beyond your website offerings?

Yes, Songfast provides custom development services to meet unique customer requirements for new products.
