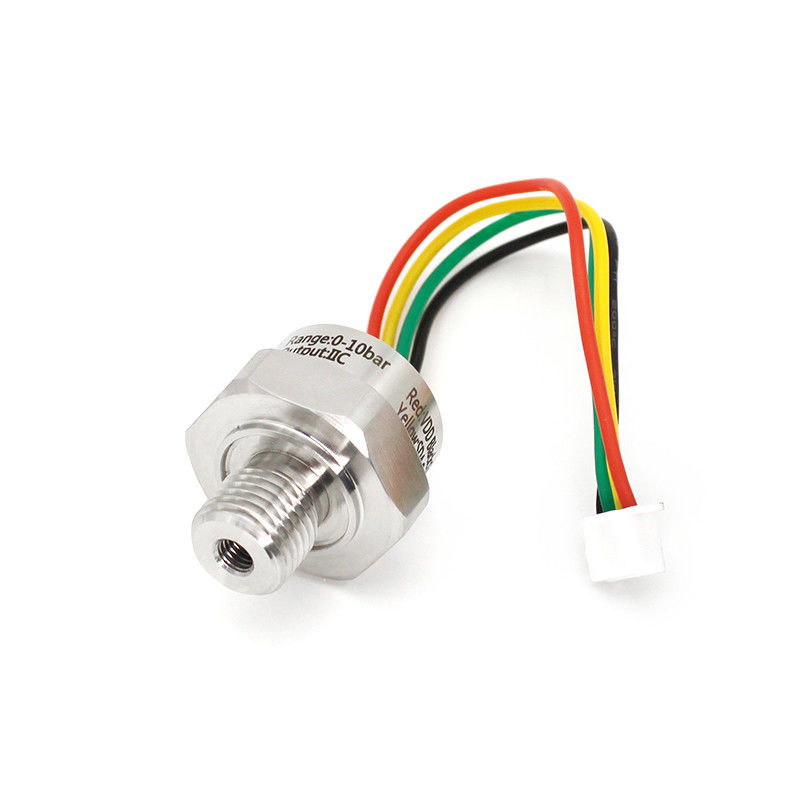

Lightweight Air Compressor Pressure Transducer Customizable IP65 Protection

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

200 Series Pressure Transmi...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Lightweight Air Compressor Pressure Transducer

Customizable Air Compressor Pressure Transducer

IP65 Compressor High Pressure Switch

Product Description

Lightweight Air Compressor Pressure Transducer with Customizable IP65 Protection

Tolerates High Pressures with Robust Overload Capability in Air Compressor Pressure Sensor

Key Features

Wide Operating Temperature Range: Operates effectively from -40°C to 85°C
Compact & Cost-Effective Design: Space-efficient construction that doesn't sacrifice performance
Advanced Algorithmic Compensation: Improved accuracy through intelligent correction technologies
Robust Overload Capability: Tolerates pressures up to 150% of full-scale ratings
Superior Shock Resistance: Built to endure demanding environments
Versatile Output Options: Multiple signal interfaces to choose from
Flexible Customization: Can be tailored to meet diverse application needs

Typical Applications

Water Resource & Energy Management
Industrial Process Equipment
Machinery & Manufacturing
Petrochemical Industry
Food Processing & Pharmaceutical Production

Product Overview

The 200 Series Transmitter is a fully in-house developed solution designed for a wide array of industrial pressure measurement applications. Central to its design is a proprietary ceramic sensor element, offering outstanding reliability and accuracy.

This transmitter is resistant to high temperatures and corrosive environments, featuring exceptional long-term stability. Its compact size, combined with remarkable performance and excellent cost-effectiveness, makes it suitable for monitoring both liquids and gases in various sectors, including hydraulics, process engineering, machine building, petrochemicals, and food and pharmaceutical manufacturing.

Every phase—ranging from research and development to assembly, calibration, and final inspection—adheres strictly to international quality standards, ensuring dependable product performance and consistent quality control.

Specifications

Model	200 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…600 bar (Customizable)
Accuracy	≤ ±1%F.S；Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0.5~4.5V \| 0.35~2.7V Ratio \| 0.132~4.5V Ratio \| IIC/UART Digital Signal
Supply Voltage	8-32V DC \| 5V DC \| 3-5.5V DC/5VDC
Operating Temperature	-40℃~85℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection, Aviation Connector, Hirschmann Connector
Pressure Connection	Internal Thread \| 7/16~20 UNF External Thread \| 1/4" NPT,R1/4,G1/4",G1/2",M141.5,M161.5,M20*1.5 Customizable \| Thread specifications can be customized according to customer requirements
Materials	Housing \| SUS304 stainless steel (standard),Copper (optional), 316L stainless steel (optional), Customizable Sensor \| Ceramic (Standard) O-ring \| NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65,IP67,Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar); 150%F.S(400＜P ≤600bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What distinguishes Songfast's products from other brands?

With a technical team that brings over two decades of expertise in sensor technology, Songfast delivers prompt and professional solutions customized to each client's unique requirements. We are highly responsive to requests for personalized product customization. Our dedicated quality assurance team rigorously oversees every stage of production, ensuring consistent quality and reliable delivery times—typically within 30 days.

Q2: What certifications and industry standards does Songfast adhere to?

Songfast is committed to quality and compliance, holding the following certifications:

ISO 9001 (Quality Management)
IATF 16949 (Automotive Industry Standard)
ISO 45001 (Occupational Health & Safety)
ISO 14001 (Environmental Management)

In addition, we have been granted more than 20 national patents, reflecting our focus on innovation and industry leadership.

Q3: Can Songfast provide custom development for products not listed on your website?

Absolutely! We offer comprehensive custom development services tailored to your specific application needs, ensuring that even the most specialized requirements can be met efficiently and effectively.
