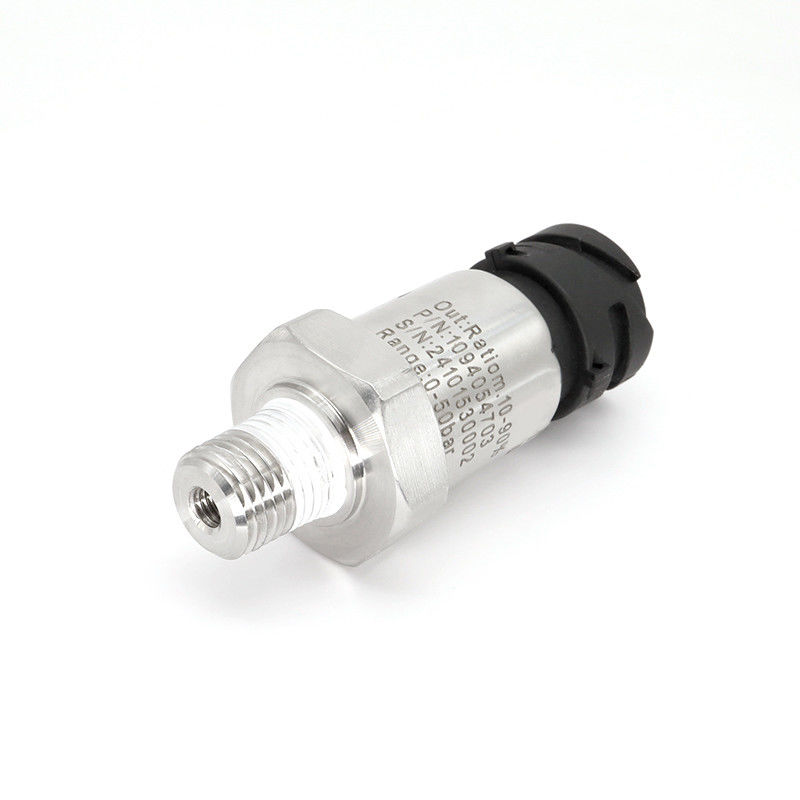

Compact Air Conditioner Pressure Switch Real Time Monitoring Customized

Brand Name:	SongFast
MOQ:	500pcs
Price:	$7.80 - $9.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100-E Series Pressure Trans...r.docx

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Compact Air Conditioner Pressure Switch

Customized Air Conditioner Pressure Switch

Real Time Monitoring Hvac Pressure Sensor

Product Description

Compact Air Conditioner Pressure Switch with Real-Time Monitoring

High-performance air compressor pressure sensor designed for extreme conditions with wide operating temperature range

Key Features

Wide Operating Temperature Range: Performs reliably across extreme conditions from -40℃ to 135℃
Compact and Cost-Effective Design: Engineered for space efficiency and affordability
Advanced Compensation Technology: Utilizes algorithm-based compensation for precise performance
Exceptional Overload Resistance: Withstands up to 400% of full-scale overload
High Impact Durability: Designed to endure demanding environments and heavy impacts
Versatile Signal Outputs: Supports multiple output formats for diverse applications
Customizable Configurations: Offers tailored specifications for specific requirements

Applications

Air Compressor Systems

Product Overview

The 100E Series Transmitter is a high-performance pressure sensor, independently developed for use in air compressor systems. At its core is a proprietary ceramic sensor, designed in-house, which ensures exceptional resistance to high temperatures, strong corrosion resistance, superior stability and reliability, and high overload and burst pressure capabilities.

Compact and lightweight, this transmitter delivers outstanding overall performance at a competitive cost. It is the ideal solution for pressure measurement in air compressor systems, offering durability and dependability in demanding industrial environments. Every step of the manufacturing process—from research and development to production, calibration, and rigorous quality testing—follows strict international quality standards, ensuring consistent and reliable performance for all applications.

Technical Specifications

Model	100E Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-3...70bar (Customizable)
Accuracy	≤±0.50%F.S. (Standard); ≤±1%F.S; Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3~5.5V DC
Operating Temperature	-40℃~135℃
Storage Temperature	-40℃~135℃
Electrical Connection	Aviation connector (DIN72582-1); Customizable
Pressure Connection	External Thread \| 1/4"-18NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5
Customizable	Thread specifications can be customized according to customer requirements
Materials - Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Materials - Sensor	Ceramic flat film (Standard)
Materials - O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤20ms
Overload Pressure	400%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	>600% F.S.
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team boasts over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Additionally, our dedicated production quality management team ensures strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include: ISO 9001, IATF 16949 (automotive), ISO 45001 (safety), and ISO 14001 (environmental). We also hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
