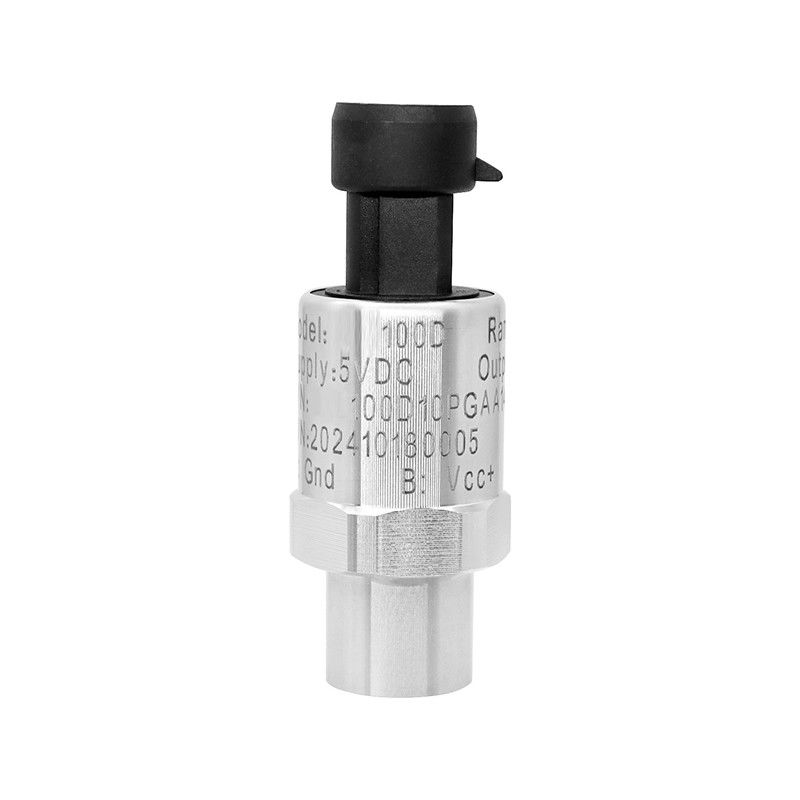

Customizable Air Compressor Pressure Sensor Industrial Flush Diaphragm Pressure Sensor

Brand Name:	SongFast
MOQ:	500pcs
Price:	$5.30 - $6.50/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

100 Series Pressure Transmi...er.pdf

Pressure Type:

Gauge Pressure, Negative Pressure, Absolute Pressure

Range:

≤±1%F.S；Customizable

Housing Materials:

SUS304 Stainless Steel (standard),Copper (optional), 316Lstainless Steel (optional), Customizable

Sensor Materials:

Ceramic (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP2×0.35mm² PVVP3×0.35mm²

Pressure Connection:

Thread Speciﬁcations Can Be Customized According To Customer Requirements

Protection Rating:

IP65、IP67、Customizable

Long-term Stability:

0.1%F.S.±0.05%/year

Insulation Resistance:

>100M Ω @50V DC

Supply Ability:

10000pcs/month

Highlight:

Customizable Air Compressor Pressure Sensor

Industrial Air Compressor Pressure Sensor

Customizable Flush Diaphragm Pressure Sensor

Product Description

Customizable Air Compressor Pressure Sensor

Industrial Flush Diaphragm Pressure Sensor designed for precision measurement in demanding environments.

Customizable Specifications for Industrial Refrigeration Units

Key Features

Wide Operating Temperature Range: Functions reliably from -35℃ to 105℃
Compact and Cost-Effective Design: Engineered for space efficiency and economical performance
Advanced Technology: Algorithm-driven compensation for precise measurements
Overload Resistance: Maintains performance under 150% of full scale loads
High Impact Resistance: Built for demanding conditions and harsh environments
Multiple Signal Outputs: Various output options for diverse applications
Customizable Specifications: Tailored configurations available

Applications

Industrial Refrigeration Units
Air Conditioning and Cooling Systems
Process Control Systems
Compressed Air Systems

Product Description

The 100 Series Transmitter is a cutting-edge, independently developed solution for pressure measurement in air compressor and refrigeration applications. Featuring a proprietary ceramic sensor that delivers exceptional resistance to high temperatures, superior corrosion protection, and outstanding stability.

Compact yet highly efficient, this transmitter is ideal for monitoring liquid and gas pressures in industrial environments. Its robust construction ensures excellent performance across demanding applications including:

Hydraulic Energy Systems
Railway Transportation
Petrochemical Processes
Mechanical Automation
Air Compression Technologies

Every production stage—research and development, assembly, calibration, and quality testing—complies with international quality standards, guaranteeing consistent reliability and high performance.

Specifications

Model	100 Series
Pressure Type	Gauge Pressure, Negative Pressure, Absolute Pressure
Range	-1-0-1…400 bar (Customizable)
Accuracy	≤±0.50%F.S. (Standard); ≤±1%F.S; Customizable
Electrical Performance	2-wire \| 3-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC/5V DC \| 3.3~5.5V DC
Operating Temperature	-35℃~105℃
Storage Temperature	-40℃~105℃
Electrical Connection	Packard Connector, Straight Connection
Pressure Connection	Internal Thread: 7/16~20 UNF External Thread: 1/4" NPT, R1/4, G1/4", G1/2", M14×1.5, M16×1.5, M20×1.5 Customizable: Thread specifications can be customized
Materials	Housing: SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable Sensor: Ceramic (Standard) O-ring: NBR (Standard), PTFE/CR/EPDM (Optional)
Protection Rating	IP65, IP67, Customizable
Response Time	≤10ms
Overload Pressure	150%F.S.
Long-term Stability	0.1%F.S.±0.05%/year
Burst Pressure	300% F.S. (P ≤100bar); 200% F.S. (100bar＜P ≤400bar)
Insulation Resistance	>100M Ω @50V DC

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Frequently Asked Questions

What makes Songfast's products stand out from competitors?

Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to customers' application scenarios and welcome personalized customization requests. Our dedicated production quality management team ensures strict quality control with 30-day lead times.

What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

We also hold over 20 national patents.

Do you offer custom development for new products beyond your website offerings?

Yes, our company provides custom development services to meet specific customer needs.
