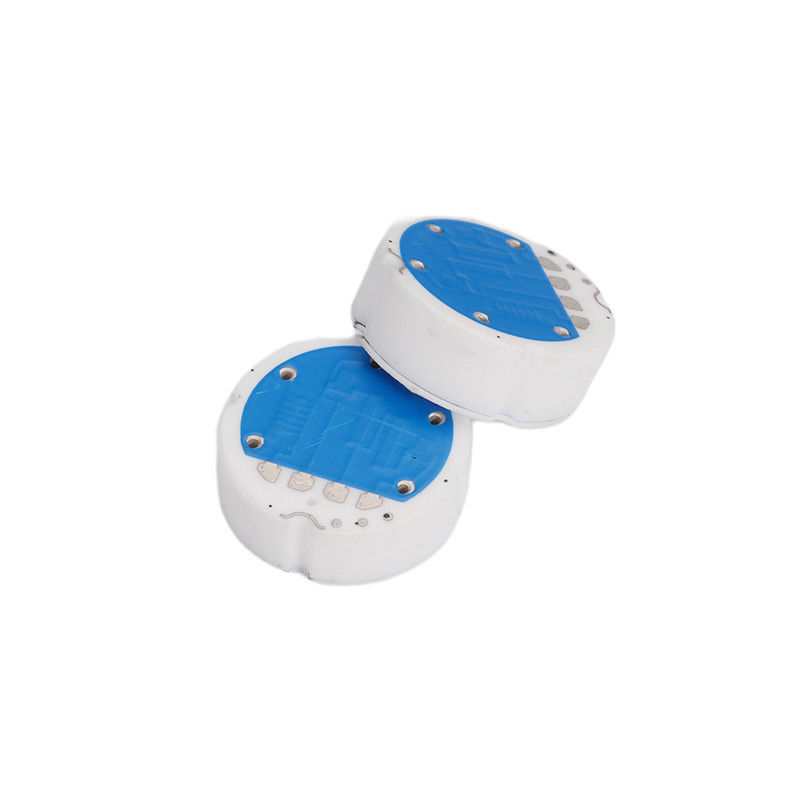

Customizable Industrial Pressure Transmitter For Automotive Precise Pressure Sensing

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

RS183A Flush Diaphragm Cera...IN.pdf

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

Customizable Industrial Pressure Transmitter

Automotive Industrial Pressure Transmitter

Customizable Industrial Pressure Transducer

Product Description

Customizable Industrial Pressure Transmitter for Automotive Precise Pressure Sensing

Customizable Pressure Sensor Core for Precise Pressure Sensing in Industrial Applications

Main Features

Patented circuit layout design
Unique structural design
Ultra-high overload and burst pressure, suitable for high-impact pressure scenarios
Wide temperature range, broad applicability
High-elasticity diaphragm to enhance sensitivity and meet high-precision measurement requirements
Supports precise data acquisition

Product Parameters

Parameters	Electrical Characteristics
Series Name	RS186A/ RS183A Series
Type	Temperature compensation Flush diaphragm
Size (diameter x height)	φ18×6. mm/ φ18×3.mm (height customizable)
Supply voltage	2-30 V DC
Bridge road impedance	※10.0kΩ ± 30%
TCR	≤ 100 ppm/℃@-40℃~135 ℃
Operating temperature	-40 ℃~135℃
Storage temperature	-40℃~150 ℃
Temperature drift	※ Tco&Tcs 0.02%FS/℃ Max
Output accuracy	※±1.0% Vcc@0-70 ℃, ±3.0%Vcc@-40 ℃~135℃
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Zero offset	※0±0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time	＜ 2mS
Insulation resistance	＞ 2KV
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range

RS186A / RS183A - 6.35mm Series

Product Model	Working Pressure Range	Product Thickness H	Overload Pressure	Burst Pressure
RS186A005C	0-5 Bar	6.30 ± 0.05 mm	＞ 20 Bar	＞ 40 Bar
RS186A010C	0-10 Bar	6.30 ± 0.05 mm	＞ 30 Bar	＞ 50 Bar
RS186A016C	0-16 Bar	6.35 ± 0.05 mm	＞ 48 Bar	＞ 80 Bar
RS186A020C	0-20 Bar	6.35 ± 0.05 mm	＞ 60 Bar	＞ 100 Bar
RS186A025C	0-25 Bar	6.45 ± 0.05 mm	＞ 75 Bar	＞ 125 Bar
RS186A035C	0-35 Bar	6.45 ± 0.05 mm	＞ 100 Bar	＞ 150 Bar
RS186A050C	0-50 Bar	6.55 ± 0.05 mm	＞ 150 Bar	＞ 250 Bar
RS186A070C	0-70 Bar	6.65 ± 0.05 mm	＞ 200 Bar	＞ 300 Bar
RS186A100C	0-100 Bar	6.78 ± 0.05 mm	＞ 250 Bar	＞ 400 Bar
RS186A200C	0-200 Bar	6.95 ± 0.05 mm	＞ 400 Bar	＞ 600 Bar

RS186A / RS183A - 3.50mm Series

Product Model	Working Pressure Range	Product Thickness H	Overload Pressure	Burst Pressure
RS183A005C	0-5 Bar	3.30 ± 0.05 mm	＞ 20 Bar	＞ 40 Bar
RS183A010C	0-10 Bar	3.30 ± 0.05 mm	＞ 30 Bar	＞ 50 Bar
RS183A016C	0-16 Bar	3.35 ± 0.05 mm	＞ 48 Bar	＞ 80 Bar
RS183A020C	0-20 Bar	3.35 ± 0.05 mm	＞ 60 Bar	＞ 100 Bar
RS183A025C	0-25 Bar	3.45 ± 0.05 mm	＞ 75 Bar	＞ 125 Bar
RS183A035C	0-35 Bar	3.45 ± 0.05 mm	＞ 100 Bar	＞ 150 Bar
RS183A050C	0-50 Bar	3.55 ± 0.05 mm	＞ 150 Bar	＞ 250 Bar
RS183A070C	0-70 Bar	3.65 ± 0.05 mm	＞ 200 Bar	＞ 300 Bar
RS183A100C	0-100 Bar	3.78 ± 0.05 mm	＞ 250 Bar	＞ 400 Bar
