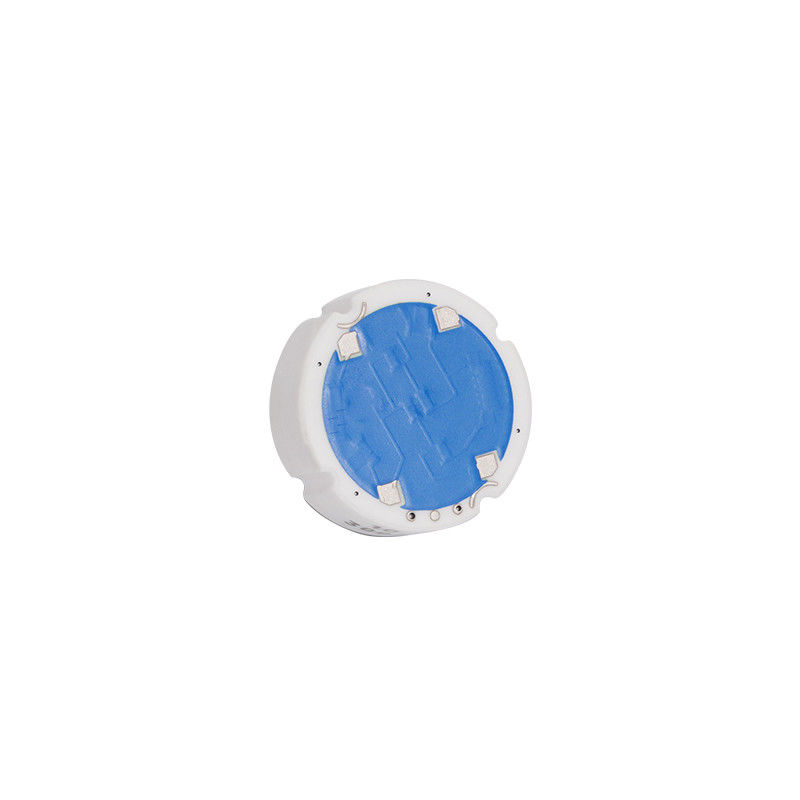

Monolithic Ceramic Pressure Sensor Gas And Liquid Ceramic Pressure Transmitter

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

CPS18635H H Version Round18...d).pdf

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

Monolithic Ceramic Pressure Sensor

Gas Ceramic Pressure Sensor

Liquid Ceramic Pressure Transmitter

Product Description

Monolithic Pressure Sensor Core For Gas and liquid pressure measurement

Main Features

High-Quality Ceramic Design: These pressure sensors are built with durable ceramic material, ensuring long-lasting performance and resistance to wear.
Precision Measurement: Designed for highly accurate pressure readings, making them suitable for critical applications in various industries.
Wide Range of Applications: Ideal for fluid systems, gas pressure monitoring, and hydraulic systems requiring stable and consistent readings.
Compact and Versatile: Lightweight and easy to integrate into different systems, offering flexibility for both industrial and commercial setups.
Environmental Resistance: With strong resistance to temperature fluctuations and corrosive environments, these sensors perform well under challenging conditions.

Applications:

Industrial pressure monitoring systems.
Hydraulic and pneumatic equipment.
Gas and liquid pressure measurement in commercial and industrial setups.
Control systems requiring precise pressure feedback.

Product Advantages:

Ceramic base with high elasticity mold
Excellent corrosion and wear resistance
Shock resistant
Wide temperature range
Internal active temperature compensation with low temperature drift coefficient
Compact size, easy to package
Patented circuit layout design

Product Parameters

Parameters	Electrical characterisitics
Series Name	CPS18635H/ CPS350H Series
Type	Temperature compensation Monolithic
Size (diameter x height)	φ186.35 mm/ φ183.50mm
Supply voltage	2-30 V DC
Bridge road impedance	※10.0kΩ ± 30%
TCR	≤ 100 ppm/℃@-40℃~125 ℃
Operating temperature	‘-40 ℃~135℃
Storage temperature	’-40℃~150 ℃
Temperature dirft	※ Tco&Tcs 0.02%FS/℃ Max
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Zero offset	※0±0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time	＜ 2mS
Insulation resistance	＞ 2KV
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range

CPS18635H /CPS18635H
6.35mm Series
Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18635G002F	0-2 Bar	2	4
CPS18635G005F	0-5 Bar	10	15
CPS18635G010F	0-10 Bar	20	30
CPS18635G016F	0-16 Bar	32	48
CPS18635G020F	0-20 Bar	40	60
CPS18635G025F	0-25 Bar	50	75
CPS18635G030F	0-30 Bar	60	90
CPS18635G050F	0-50 Bar	100	150
CPS18635G100F	0-100 Bar	200	300
CPS18635G200F	0-200 Bar	300	500
CPS18635G300F	0-300 Bar	450	600
CPS18635G400F	0-400 Bar	600	/
CPS18635G600F	0-600 Bar	800	/

3.50mm Series
Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18350G005H	0-5 Bar	10	15
CPS18350G010H	0-10 Bar	20	30
CPS18350G016H	0-16 Bar	32	48
CPS18350G020H	0-20 Bar	40	60
CPS18350G025H	0-25 Bar	50	75
CPS18350G030H	0-30 Bar	60	90
CPS18350G050H	0-50 Bar	100	150
CPS18350G100H	0-100 Bar	200	300

High Precision Measurements
The CPS18635H / CPS18350H pressure sensors provide highly accurate measurements, making them an ideal choice for industries requiring precision. Whether you need to measure air pressure in automotive systems or water pump pressure, these sensors offer reliability and stability.

Versatile Application Range
These sensors are suitable for multiple applications such as automotive systems (engine oil pressure sensor), HVAC systems (pressure sensor for air conditioners), and water pumps. Their versatile design ensures functionality across a wide range of environments.

Durability and Reliability
Designed to withstand challenging conditions, the CPS18635H and CPS18350H sensors offer long-lasting durability. Their robust construction ensures they operate under high pressure and in tough environments, providing consistent performance over time.

Industry-leading Quality
Manufactured by one of the top pressure sensor manufacturers, these sensors maintain industry standards for quality and durability. They are engineered to meet the rigorous demands of both automotive and industrial pressure sensing applications.
