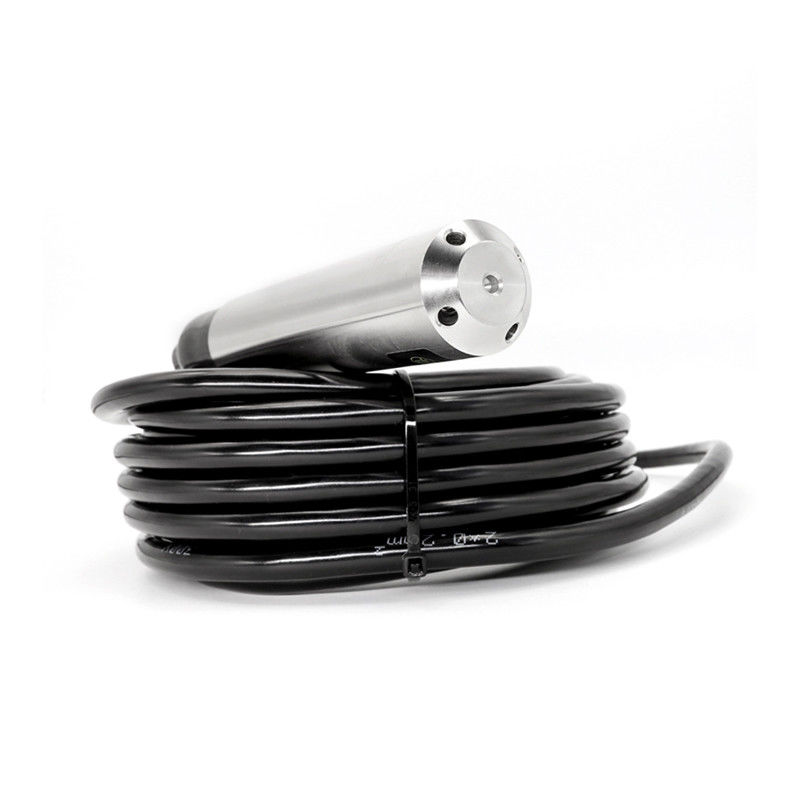

Stable Water Level Pressure Transducer Water Resistant Customized For River Reservoirs

Brand Name:	SongFast
MOQ:	500pcs
Price:	$37.80 - $40.80/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

400A Series Pressure Transm...er.pdf

Pressure Type:

Gauge Pressure, Absolute Pressure

Accuracy:

≤ ±0.5%F.S(Standard)； ≤ ±0.25%F.S；Customizable

Operating Temperature:

-30℃~85℃

Storage Temperature:

-30℃~85℃

Compensation Temperature:

0~60℃

Electrical Connection:

Straight Connection

Housing Materials:

SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable

Sensor Materials:

Diffused Silicon (Standard)

O-ring Materials:

NBR (Standard), PTFE/CR/EPDM (Optional)

Cable Materials:

RVVP5×0.35mm², φD7.5mm

Response Time:

≤10ms

Protection Rating:

IP68

Measuring Medium:

Compatible With SUS304 Or 316L Stainless Steel

Zero Temperature Drift:

0.05%FS/℃( ≤100kPa）

Long-term Stability:

0.2%F.S±0.05%/year

Overload Pressure:

150%F.S.

Supply Ability:

10000pcs/month

Highlight:

Stable Water Level Pressure Transducer

Customized Water Level Pressure Transducer

River Reservoirs Liquid Level Sensor

Product Description

Stable Water Level Pressure Transducer

Water resistant pressure transducer customized for river reservoirs, firefighting water tanks, and water resource management applications.

Key Features

Wide Temperature Range: Operates efficiently from -30℃ to 85℃
Compact Design: Engineered for exceptional cost-effectiveness
High-Sensitivity Sensor Core: Guarantees robust signal transmission
Extensive Measurement Range: Ensures low power consumption
Long-Term Stability: Delivers consistent performance over time
Strong Interference Resistance: Shields against external disruptions
Multiple Signal Outputs: Offers versatile connectivity options
Customizable Specifications: Adaptable to meet various requirements

Applications

River Reservoirs
Firefighting Water Tanks
Engineering Water Pools
Water Resource Management
Agricultural Irrigation

Product Description

The 400A Series Transmitter is a proprietary liquid level measurement device designed for independent operation. Its core sensor incorporates a built-in diffused silicon element, enhancing both accuracy and reliability.

Featuring a fluid dynamics design and a unique arc-shaped housing, this transmitter effectively reduces medium disturbances, ensuring stable performance. It includes a detachable bottom filter to prevent clogging and an internal air guide tube, complemented by a triple-layer protection process.

Compact and highly efficient, the 400A Series is well-suited for demanding environments. Throughout the entire manufacturing process—from research and development to production assembly, calibration, and quality inspection—strict adherence to international quality standards is maintained.

Technical Specifications

Model	400A Series
Pressure Type	Gauge Pressure, Absolute Pressure
Range	0-1 m…300 m (Customizable)
Accuracy	≤ ±0.5%F.S (Standard); ≤ ±0.25%F.S; Customizable
Electrical Performance	2-wire \| 3-wire \| 4-wire
Output Signal	4~20mA \| 0~5V \| 0~10V \| 0.5~4.5V \| 10~90% Ratio \| RS485
Supply Voltage	8~32V DC \| 8~32V DC \| 12~32V DC \| 8~32V DC / 5V DC \| 3~5.5V DC \| 8~32V DC
Operating Temperature	-30℃~85℃
Storage Temperature	-30℃~85℃
Compensation Temperature	0~60℃
Electrical Connection	Straight Connection
Materials - Housing	SUS304 Stainless Steel (Standard), 316L Stainless Steel (Optional), Customizable
Materials - Sensor	Diffused Silicon (Standard)
Materials - O-ring	NBR (Standard), PTFE/CR/EPDM (Optional)
Response Time	≤10ms
Protection Rating	IP68
Measuring Medium	Compatible with SUS304 or 316L stainless steel
Zero Temperature Drift	0.05%FS/℃( ≤100kPa)
Long-term Stability	0.2%F.S±0.05%/year
Overload Pressure	150%F.S.

Dimensions and Wiring Definitions

Wiring Definitions

Wire Color	2-wire	3-wire	4-wire
Red	Power (Vcc+)	Power (Vcc+)	Power (Vcc+)
Black	Signal(Iout)	Power (GND)	Power (GND)
Yellow	Ground	Ground	Ground
Green	/	Signal(Vout)	485A
Blue	/	/	485B

Ordering Guide

Frequently Asked Questions

Q1: What makes Songfast's products stand out from competitors?

Our technical team has over 20 years of experience in the sensor industry. We provide rapid, professional solutions tailored to our customers' application scenarios and welcome personalized customization requests. With a dedicated production quality management team, we ensure strict quality control while delivering goods within a 30-day lead time.

Q2: What official certifications and industry compliance standards has the company obtained?

Our certifications include:

ISO 9001
IATF 16949 (automotive)
ISO 45001 (safety)
ISO 14001 (environmental)

Additionally, we hold over 20 national patents.

Q3: Do you offer custom development for new products beyond your website offerings?

Yes, we provide custom development services tailored to your needs.
