Flush Diaphragm Pressure Sensor

Accurate Measurements Ceramic Diaphragm Pressure Transmitter High Elasticity

All Category

Air Compressor Pressure Sensor

Industrial Pressure Sensor

Water Level Transmitter

Flush Diaphragm Pressure Sensor

HVAC Pressure Sensor

Ceramic Pressure Transmitter

Ceramic Pressure Sensor

Pressure Sensor Module

Liquid Level Sensors

Mrs. Jenny Huang

songfast168@gmail.com

+8613580900852

Contact Now

Accurate Measurements Ceramic Diaphragm Pressure Transmitter High Elasticity

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

RS183A Flush Diaphragm Cera...IN.pdf

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

Accurate Measurements Ceramic Diaphragm Pressure Transmitter

High Elasticity Ceramic Diaphragm Pressure Transmitter

High Elasticity Industrial Pressure Transducer

Product Description

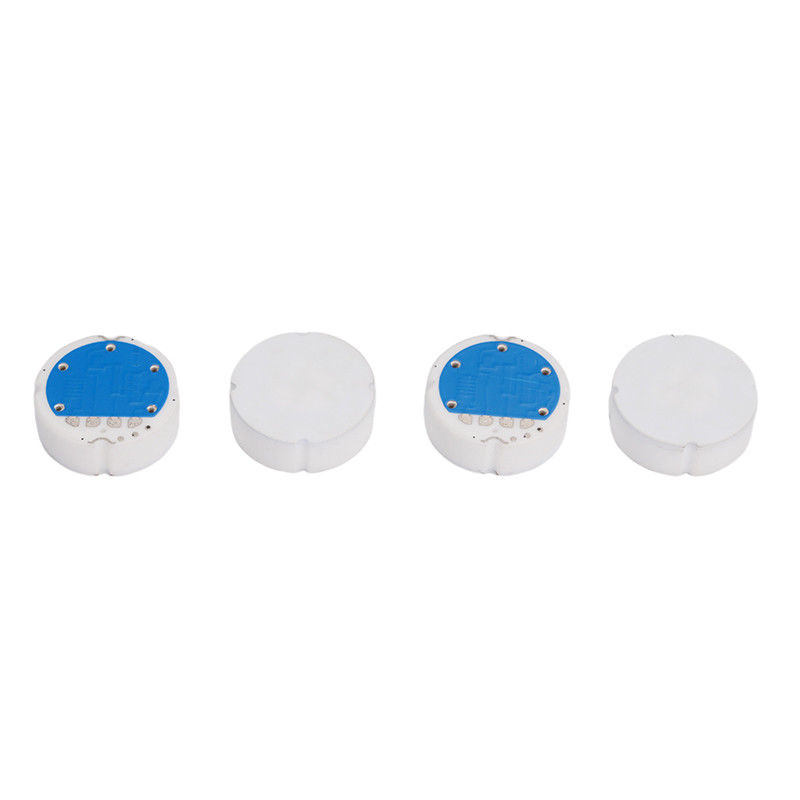

Accurate Measurements Ceramic Diaphragm Pressure Transmitter High Elasticity

Advanced pressure sensor with high-elasticity diaphragm for enhanced sensitivity and precise data acquisition in demanding industrial applications.

Main Features

Patented Circuit Layout: Innovative design for optimal performance
Distinct Structural Design: Tailored for enhanced functionality
Ultra-High Overload and Burst Pressure: Ideal for high-impact pressure applications
Wide Temperature Range: Versatile for diverse environments
High-Elasticity Diaphragm: Boosts sensitivity for accurate measurements
Supports Precise Data Acquisition: Ensures reliable data collection

Product Parameters

Parameters	Electrical Characteristics
Series Name	RS186A/ RS183A Series
Type	Temperature compensation Flush diaphragm
Size (diameter x height)	φ186.() mm/ φ183.(**)mm (height customizable)
Supply voltage	2-30 V DC
Bridge road impedance	※10.0kΩ ± 30%
TCR	≤ 100 ppm/℃@-40℃~135 ℃
Operating temperature	-40 ℃~135℃
Storage temperature	-40℃~150 ℃
Temperature drift	※ Tco&Tcs 0.02%FS/℃ Max
Output accuracy	※±1.0% Vcc@0-70 ℃, ±3.0%Vcc@-40 ℃~135℃
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Zero offset	※0±0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time	＜ 2mS
Insulation resistance	＞ 2KV
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range

RS186A / RS183A - 6.35mm Series

Product Model	Working Pressure Range	Product thickness H	Overload Pressure	Burst Pressure
RS186A005C	0-5 Bar	6.30 ± 0.05 mm	＞ 20 Bar	＞ 40 Bar
RS186A010C	0-10 Bar	6.30 ± 0.05 mm	＞ 30 Bar	＞ 50 Bar
RS186A016C	0-16 Bar	6.35 ± 0.05 mm	＞ 48 Bar	＞ 80 Bar
RS186A020C	0-20 Bar	6.35 ± 0.05 mm	＞60 Bar	＞ 100 Bar
RS186A025C	0-25 Bar	6.45 ± 0.05 mm	＞ 75 Bar	＞ 125 Bar
RS186A035C	0-35 Bar	6.45 ± 0.05 mm	＞ 100 Bar	＞ 150 Bar
RS186A050C	0-50 Bar	6.55 ± 0.05 mm	＞150 Bar	＞ 250 Bar
RS186A070C	0-70 Bar	6.65 ± 0.05mm	＞200 Bar	＞ 300 Bar
RS186A100C	0-100 Bar	6.78±0.05mm	＞ 250 Bar	＞ 400 Bar
RS186A200C	0-200 Bar	6.95 ±0.05mm	＞ 400 Bar	＞600 Bar

RS186A / RS183A - 3.50mm Series

Product Model	Working Pressure Range	Product thickness H	Overload Pressure (Bar)	Burst Pressure
RS183A005C	0-5 Bar	3.30 ± 0.05 mm	＞ 20 Bar	＞ 40 Bar
RS183A010C	01-10Bar	3.30 ± 0.05 mm	＞ 30 Bar	＞ 50 Bar
RS183A016C	0-16 Bar	3.35 ± 0.05 mm	＞48 Bar	＞ 80 Bar
RS183A020C	0-20 Bar	3.35 ±0.05 mm	＞60 Bar	＞ 100 Bar
RS183A025C	0-25 Bar	3.45±0.05 mm	＞ 75 Bar	＞125 Bar
RS183A035C	0-35 Bar	3.45±0.05 mm	＞ 100 Bar	＞ 150Bar
RS183A050C	0-50 Bar	3.55± 0.05mm	＞ 150 Bar	＞ 250 Bar
RS183A070C	0-70 Bar	3.65 ± 0.05mm	＞ 200 Bar	＞ 300 Bar
RS183A100C	0-100 Bar	3.78 ± 0.05mm	＞ 250 Bar	＞ 400 Bar

Frequently Asked Questions

Q1. What makes Songfast's products stand out from competitors?

Songfast distinguishes itself through:

Extensive Experience: Our technical team possesses over 20 years of experience in the sensor industry
Tailored Solutions: We provide rapid, professional solutions customized to meet specific customer application scenarios
Personalized Customization: We welcome personalized customization requests to ensure optimal product fit
Stringent Quality Control: Our dedicated production quality management team ensures strict quality control throughout the manufacturing process
Efficient Delivery: We maintain a 30-day lead time for product delivery

Q2. What official certifications and industry compliance standards has the company obtained?

Songfast holds the following certifications and adheres to these standards:
