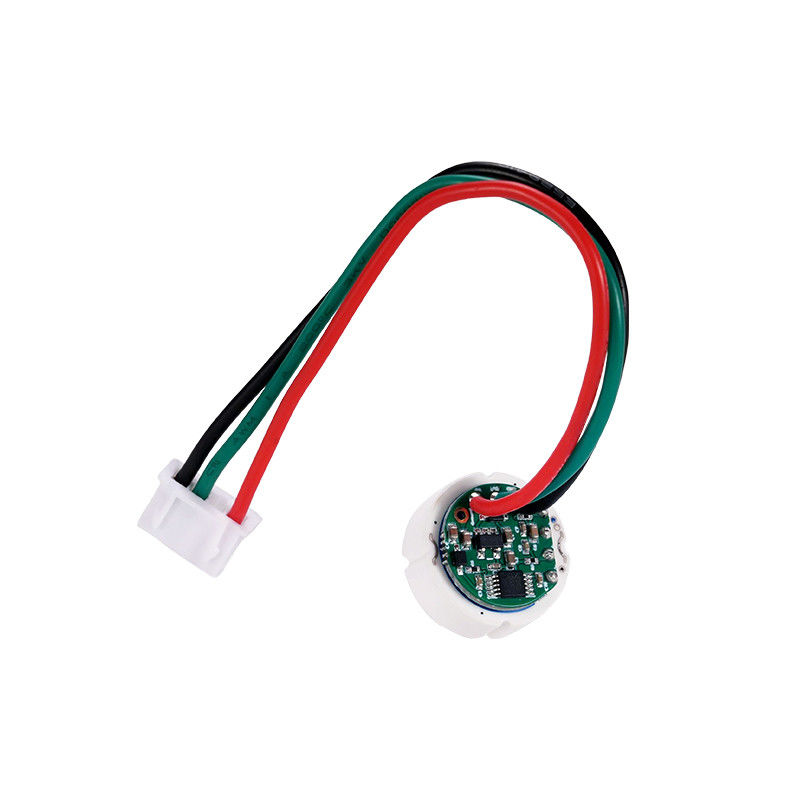

Piezoresistive Pressure Sensor Module Automotive Pressure Transducer Module

• Integrated design with high product stability
• Supports customization of various output signals such as current, voltage, IIC, etc.
• Easy and convenient to use
• Excellent EMC protection and reverse polarity protection


  Product Parameters

  Parameters	Electrical characterisitics
  Series Name	CPS 18635MV1/CPS18350MV1
  Type	Monolithic  module
  Size (diameter x height)	φ18x6.35/φ18x3.5mm
  Supply voltage	5.0V ±10% DC (optional 8-32V DC )
  Working current	＜10 mA
  Output voltage	※ 0.5-4.5V DC
  Over voltage	＜ 12V DC
  Operating temperature	‘-40 ℃~125℃
  Storage temperature	’-40℃~150 ℃
  Nonlinearity	0.25% FS Max
  Hysteresis & repeatability	0.25% FS Max
  Output accuracy	※ ± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40 ℃~125℃
  Response time	＜ 2mS
  Insulation resistance	＞ 2KV
  Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
  Cycle life	5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃
  Working medium	oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc



  Product Range

  CPS18635MV1/CPS18350MV1  Series
  Thickness 18×6.35mm Series
  Product model	Working pressure range	Overload pressure	Burst pressure (Bar)
  CPS18635G002MV1	0-2Bar	2	4
  CPS18635G005MV1	0-5Bar	10	15
  CPS18635G010MV1	0-10Bar	20	30
  CPS18635G016MV1	0-16Bar	32	48
  CPS18635G020MV1	0-20Bar	40	60
  CPS18635G025MV1	0-25Bar	50	75
  CPS18635G030MV1	0-30Bar	60	90
  CPS18635G050MV1	0-50Bar	100	150
  CPS18635G100MV1	0-100Bar	200	300
  CPS18635G200MV1	0-200Bar	300	500
  CPS18635G300MV1	0-300Bar	450	600
  CPS18635G400MV1	0-400Bar	600	/
  CPS18635G600MV1	0-600Bar	800	/
  Thickness 18×3.50mm Series
  Product model	Working pressure range	Overload pressure	Burst pressure(Bar)
  CPS18350G005MV1	0-5Bar	10	15
  CPS18350G010MV1	0-10Bar	20	30
  CPS18350G020MV1	0-20Bar	40	60
  CPS18350G030MV1	0-30Bar	60	90
  CPS18350G050MV1	0-50Bar	100	150
  CPS18350G100MV1	0-100Bar	200	300
