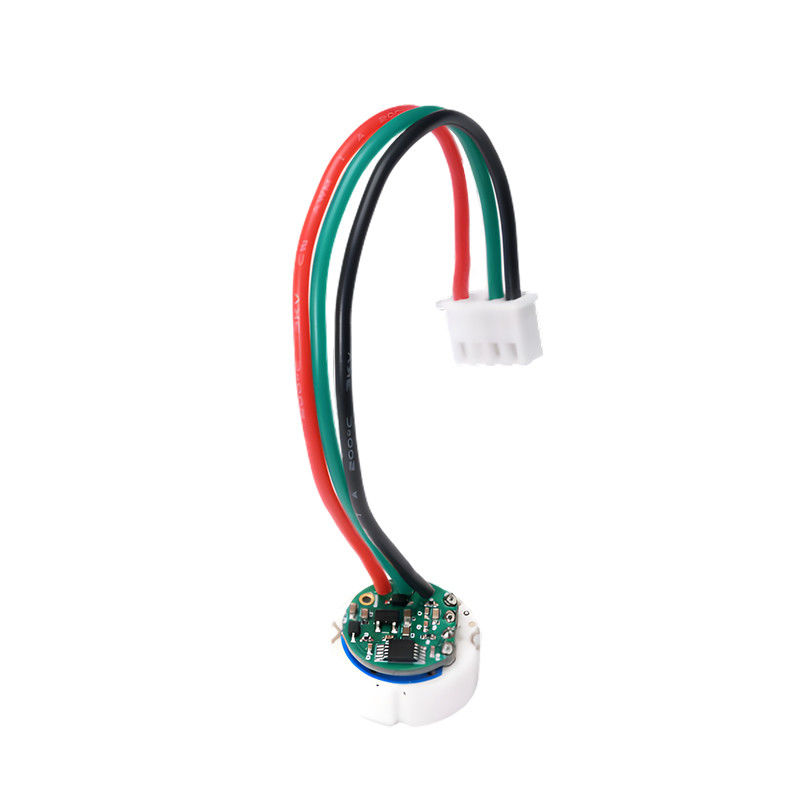

Customization Pressure Sensor Module Convenient High Precision Pressure Sensor

Brand Name:	SongFast
MOQ:	500pcs
Price:	$3.60 - $5.60/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Output Voltage:

※0.5-4.5V DC

Supply Current Range:

＜10mA

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜10mS

Long-term Stability:

Zero@25℃：＜0.25%FSO(no Time Accumulation)

Working Medium:

Oil, Water, Gas, Refrigerant, Coolant, Chemical Solvent, Detergent, Etc

Material:

Aluminum Oxide

Supply Ability:

10000pcs/month

Highlight:

Customization Pressure Sensor Module

convenient Pressure Sensor Module

Customization High Precision Pressure Sensor

Product Description

Customization Pressure Sensor Module Convenient High Precision Pressure Sensor

High-Performance Pressure Sensor Module for Precise Industrial Measurements

Main Features

Integrated design with high product stability
Supports customization of various output signals such as current, voltage, IIC, etc.
Easy and convenient to use
Excellent EMC protection and reverse polarity protection

Product Parameters

Parameters	Electrical Characteristics
Series Name	RS186MV/RS183MV
Type	Flush diaphragm module
Size (diameter x height)	φ18x(6.3-6.95)/φ18x (3.3-3.78)mm
Supply voltage	5.0 ± 10% DC (optional 8-32V DC)
Working current	＜10 mA
Output signal	0.5-4.5V DC
Over voltage	＜ 12V DC
Operating temperature	-40℃~125℃
Storage temperature	-40℃~150℃
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Output accuracy	± 1.0% Vcc@0-70℃, ± 3.0% Vcc@-40℃~125℃
Response time	＜ 10 mS
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15~35℃
Working medium	oil, water, gas, refrigerant, coolant, chemical solvents, detergents, etc

Product Range - RS186MV/RS183MV

Thickness 18x6.35mm Series

Product model	Working pressure range	Product thickness H	Overload pressure	Burst pressure
RS186A005MV	0-5Bar	6.30±0.05mm	>20Bar	>40Bar
RS186A010MV	0-10Bar	6.30±0.05mm	>30Bar	>50Bar
RS186A016MV	0-16Bar	6.35±0.05mm	>48Bar	>80Bar
RS186A020MV	0-20Bar	6.35±0.05mm	>60Bar	>100Bar
RS186A025MV	0-25Bar	6.45±0.05mm	>75Bar	>125Bar
RS186A035MV	0-35Bar	6.45±0.05mm	>100Bar	>150Bar
RS186A050MV	0-50Bar	6.55±0.05mm	>150Bar	>250Bar
RS186A070MV	0-70Bar	6.65±0.05mm	>200Bar	>300Bar
RS186A100MV	0-100Bar	6.78±0.05mm	>250Bar	>400Bar
RS186A200MV	0-200Bar	6.95±0.05mm	>400Bar	>600Bar

Thickness 18×3.50mm Series

Product model	Working pressure range	Product thickness H	Overload pressure	Burst pressure
RS183A005MV	0-5Bar	3.30±0.05mm	>20Bar	>40Bar
RS183A010MV	0-10Bar	3.30±0.05mm	>30Bar	>50Bar
RS183A016MV	0-16Bar	3.35±0.05mm	>48Bar	>80Bar
RS183A020MV	0-20Bar	3.35±0.05mm	>60Bar	>100Bar
RS183A025MV	0-25Bar	3.45±0.05mm	>75Bar	>125Bar
RS183A035MV	0-35Bar	3.45±0.05mm	>100Bar	>150Bar
RS183A050MV	0-50Bar	3.55±0.05mm	>150Bar	>250Bar
RS183A070MV	0-70Bar	3.65±0.05mm	>200Bar	>300Bar
RS183A100MV	0-100Bar	3.78±0.05mm	>250Bar	>400Bar

High Precision for Accurate Measurements

Both the RS186MV and RS183MV sensors are engineered to deliver exceptional accuracy, making them ideal for applications where precise pressure measurements are critical. These sensors excel as engine oil pressure sensors, manifold absolute pressure sensors, and best tire pressure gauges, ensuring optimal operation of automotive and industrial systems.

Versatile Application Range

These sensors are versatile and can be used across a variety of applications, including water pressure sensors, air compressor sensors, and pressure transmitters for HVAC systems. Their flexibility makes them ideal for automotive diagnostics, industrial machinery, and HVAC maintenance.

Durability and Reliability

The RS186MV and RS183MV sensors are built to withstand harsh environmental conditions. Their durable construction ensures long-lasting performance even in extreme temperatures and moisture-rich environments, making them a reliable choice for both water pressure sensors and pressure transducers.

Manufactured by Leading Pressure Sensor Suppliers

Manufactured by trusted pressure transmitter manufacturers and pressure transducer suppliers, these sensors adhere to the highest standards of quality and performance. They offer unparalleled reliability and are suitable for diverse applications that require accurate pressure monitoring.
