Ceramic Pressure Sensor

Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control

All Category

Air Compressor Pressure Sensor

Liquid Level Sensors

Mrs. Jenny Huang

songfast88@gmail.com

+8613580900852

Contact Now

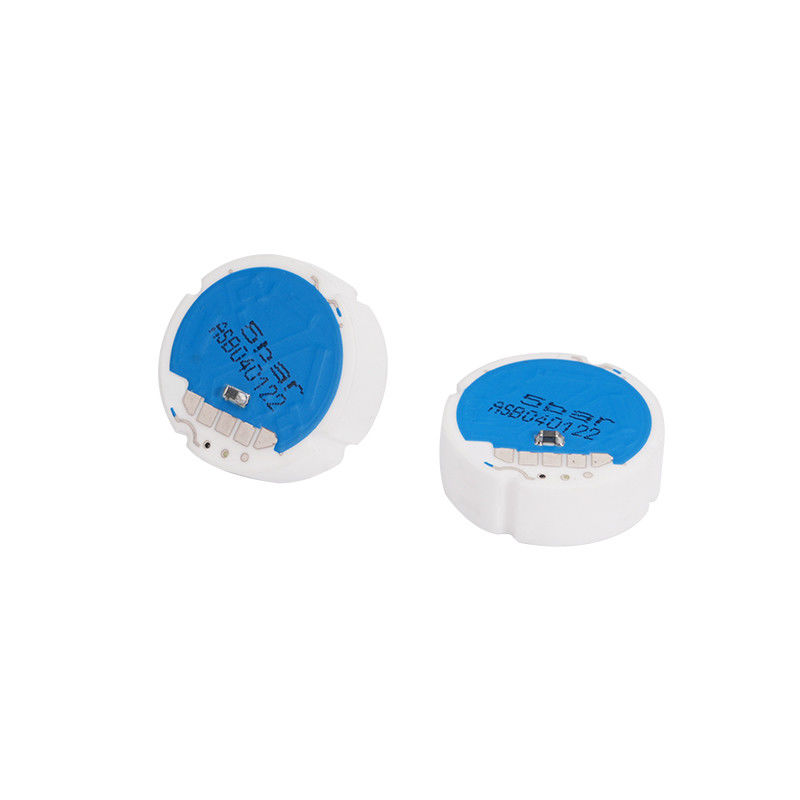

Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control

Brand Name:	SongFast
MOQ:	500pcs
Price:	$1.90 - $2.90/pieces
Packaging Details:	According to customer requirements
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO 9001, IATF 16949

Document:

CPS18635E E Version Round 1...in.pdf

Supply Voltage:

2-30V DC

Bridge Impedance:

※10.0KΩ±30%

Sensitivity:

※2.0-4.0mV/V/FS

TCR:

≤100ppm/℃@-40℃~125℃

Offset:

※0±0.4mV/V

Operating Temperature:

-40℃~135℃

Storage Temperature:

-40℃~150℃

Thermal Offset/span Shift:

※Tco&Tcs 0.02%FS/℃ Max

NonLinearity:

0.25%FS Max

Hysteresis&Repatability:

0.25%FS Max

Response Time:

＜2mS

Dielectric Strength:

>2KV

Supply Ability:

10000pcs/month

Highlight:

Shockproof Ceramic Capacitive Pressure Sensor

Temperature Control Ceramic Capacitive Pressure Sensor

Temperature Control Industrial Pressure Transmitter

Product Description

High-Performance Pressure Sensor Core for Temperature and Pressure Detection and Control

Main Features

Pressure and temperature combined into one
Ceramic base with high elasticity mold
Excellent corrosion and wear resistance
Shock resistant
Wide temperature range
Internal active temperature compensation with low temperature drift coefficient
Compact size, easy to package
Patented circuit layout design

Product Parameter

Parameters	Electrical Characterisitics
Series Name	CPS18635E/ CPS350E Series
Type	combined pressure & temperature Monolithic
Size (diameter x height)	φ186.35 mm/φ 183.50mm
Supply voltage	2-30 V DC
Bridge road impedance	※10.0kΩ ± 30%
TCR	≤ 100 ppm/℃@-40℃~125 ℃
NTC	※ 10KΩ±1%@25℃ ,B( 25℃/85 ℃) =3434K ±1%
Operating temperature	‘-40 ℃~135℃
Storage temperature	’-40℃~150 ℃
Temperature dirft	※ Tco&Tcs 0.02%FS/℃ Max
Nonlinearity	0.25% FS Max
Hysteresis & repeatability	0.25% FS Max
Zero offset	※0±0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time	＜ 2mS
Insulation resistance	＞ 2KV
Zero-point long term stability@25℃	Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life	2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range

CPS18635E /CPS18350E
6.35mm Series
Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18635G002T	0-2 Bar	4	6
CPS18635G005T	0-5 Bar	10	15
CPS18635G010T	0-10 Bar	20	30
CPS18635G016T	0-16 Bar	32	48
CPS18635G020T	0-20 Bar	40	60
CPS18635G025T	0-25 Bar	50	75
CPS18635G030T	0-30 Bar	60	90
CPS18635G050T	0-50 Bar	100	150
CPS18635G100T	0-100 Bar	200	300
CPS18635G200T	0-200 Bar	300	500
CPS18635G300T	0-300 Bar	450	600
CPS18635G400T	0-400 Bar	600	/
CPS18635G600T	0-600 Bar	800	/

3.50mm Series
Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
CPS18350G005T	0-5 Bar	10	15
CPS18350G010T	0-10 Bar	20	30
CPS18350G020T	0-20 Bar	40	60
CPS18350G030T	0-30 Bar	60	90
CPS18350G050T	0-50 Bar	100	150
CPS18350G100T	0-100 Bar	200	300

Superior Accuracy and Reliability
The CPS18635E and CPS18350E pressure sensors are engineered to provide precise pressure measurements, ensuring optimal performance in engine oil pressure sensors, best tire pressure gauge, and manifold absolute pressure sensor applications. Whether you're testing tire pressure or checking oil levels, you can trust the accuracy of these sensors.

Versatile Applications
These sensors are designed for a wide range of applications, including pressure sensor for air conditioner, pressure sensor for water pump, automotive diagnostics, and industrial use. Their versatility allows integration into multiple systems seamlessly, whether for high-precision tire pressure measurement or HVAC performance monitoring.

Built for Durability
Crafted from high-quality materials, the CPS18635E and CPS18350E sensors are built to withstand harsh conditions. With their resistance to corrosion, high temperatures, and moisture, these sensors are perfect for automotive and industrial environments, where durability and longevity are paramount.

Manufactured by Trusted Pressure Sensor Experts
As reliable pressure sensor manufacturers, these sensors are produced to meet the highest standards in quality and performance. Whether you are sourcing pressure transducers or pressure sensors, the CPS18635E and CPS18350E are an excellent choice for demanding applications.

FAQ

Q1. What makes Songfast's products stand out from competitors?

A: Songfast distinguishes itself through:

Extensive Experience: Our technical team possesses over 20 years of experience in the sensor industry.
Tailored Solutions: We provide rapid, professional solutions customized to meet specific customer application scenarios.
Personalized Customization: We welcome personalized customization requests to ensure optimal product fit.
Stringent Quality Control: Our dedicated production quality management team ensures strict quality control throughout the manufacturing process.
Efficient Delivery: We maintain a 30-day lead time for product delivery.

Q2. What official certifications and industry compliance standards has the company obtained?

A: Songfast holds the following certifications and adheres to these standards:

ISO 9001 (Quality Management System)
IATF 16949 (Automotive Quality Management System)
ISO 45001 (Occupational Health and Safety Management System)
ISO 14001 (Environmental Management System)
20+ National Patents

Q3. Do you offer custom development for new products beyond your website offerings?

A: Yes, Songfast provides custom development services to meet unique customer requirements for new products.
